VAGSport Braided Brake Lines CUPRA Leon Mk4 VZ1/VZ2/VZ3 for 340mm Front Discs (2020+)
VAGSport’s reinforced braided brake hoses represent unmatched quality in the world of high-performance braking. Upgrading your brake lines eliminates the potential ‘spongy’ feeling often found with stock rubber hoses under harsh braking conditions. Our kits have been designed as direct-fit OEM replacements for the stock caliper and braking system.
All our hoses are tested to extremes in the laboratory, and on the racetrack, where they’ve proven time and time again. Meeting AND exceeding regulatory requirements all over the world, making them road legal everywhere each VAGSport kit is assembled in-house from the premium grade stainless steel fittings swaged directly to hard drawn high tensile stainless braided hose. Beware competing lines using zinc plated fittings which are prone to corrosion!

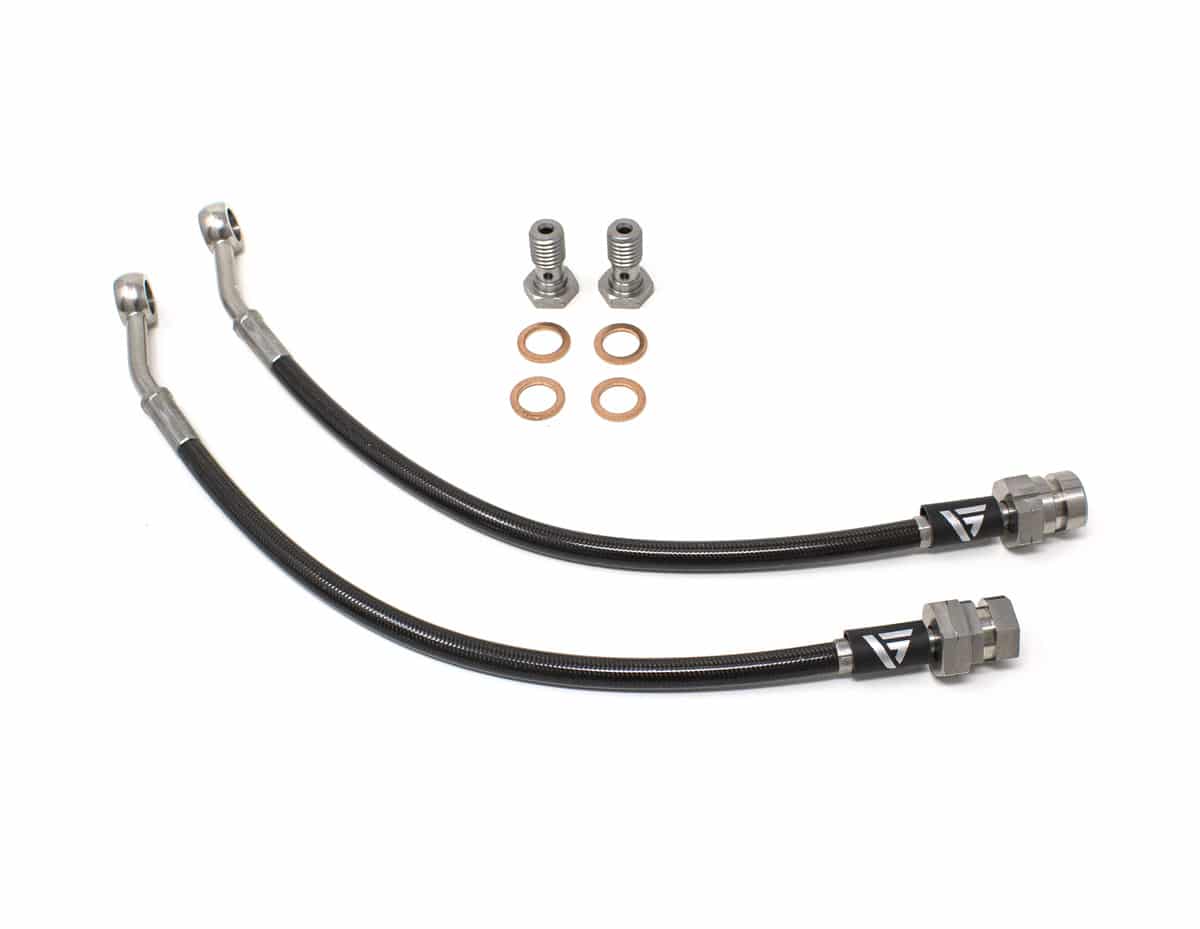

What’s Included
- Front, rear, or a full set of carbon style stainless steel braided brake lines (Select an option)
- Natural plain stainless steel banjo bolts (if the fittings require them)
- Copper crush washers (if the fittings require them)
Compatibility
- Mk4 Cupra Leon – 340mm Front Discs only (with Electronic Handbrake)
Brake Line Specifications
| Line inner material |
PTFE |
| Line outer material |
Stainless steel (303/304) and protective PVC cover |
| Fittings material |
Stainless steel (303/304) |
| Temperature range |
-70°C to 260°C (-94°F to 500°F) |
| Inside diameter |
3.5mm (0.138″) |
| Outside diameter |
7.5mm (0.295″) |
| Maximum working pressure |
290 Bar (4206 PSI) |
| Burst pressure |
870 Bar (12618 PSI) |
| Minimum bend radius |
38mm (1.496″) |
