Great addition to any standard or re-mapped Abarth 500’s. Fast Turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output
Registered Design Right number: 6023445
Hose colours shown for illustration purposes only.
Technical Data

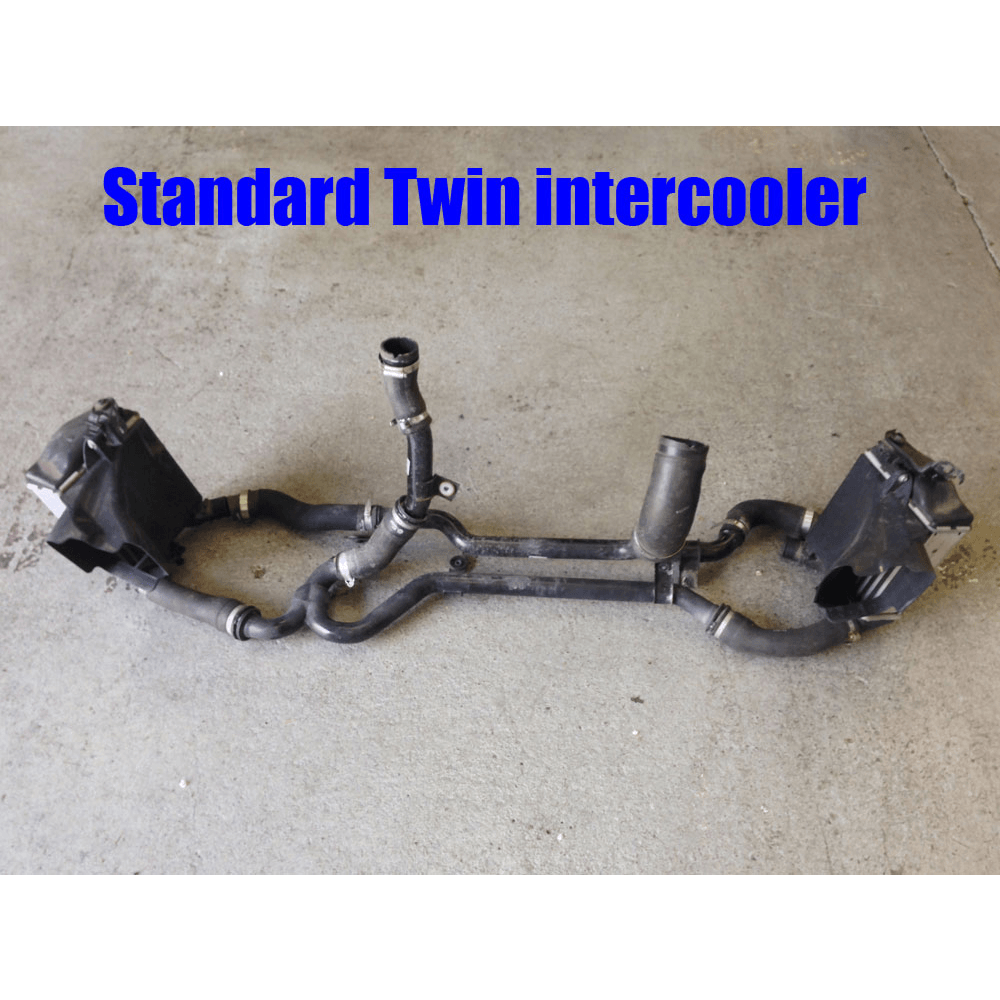

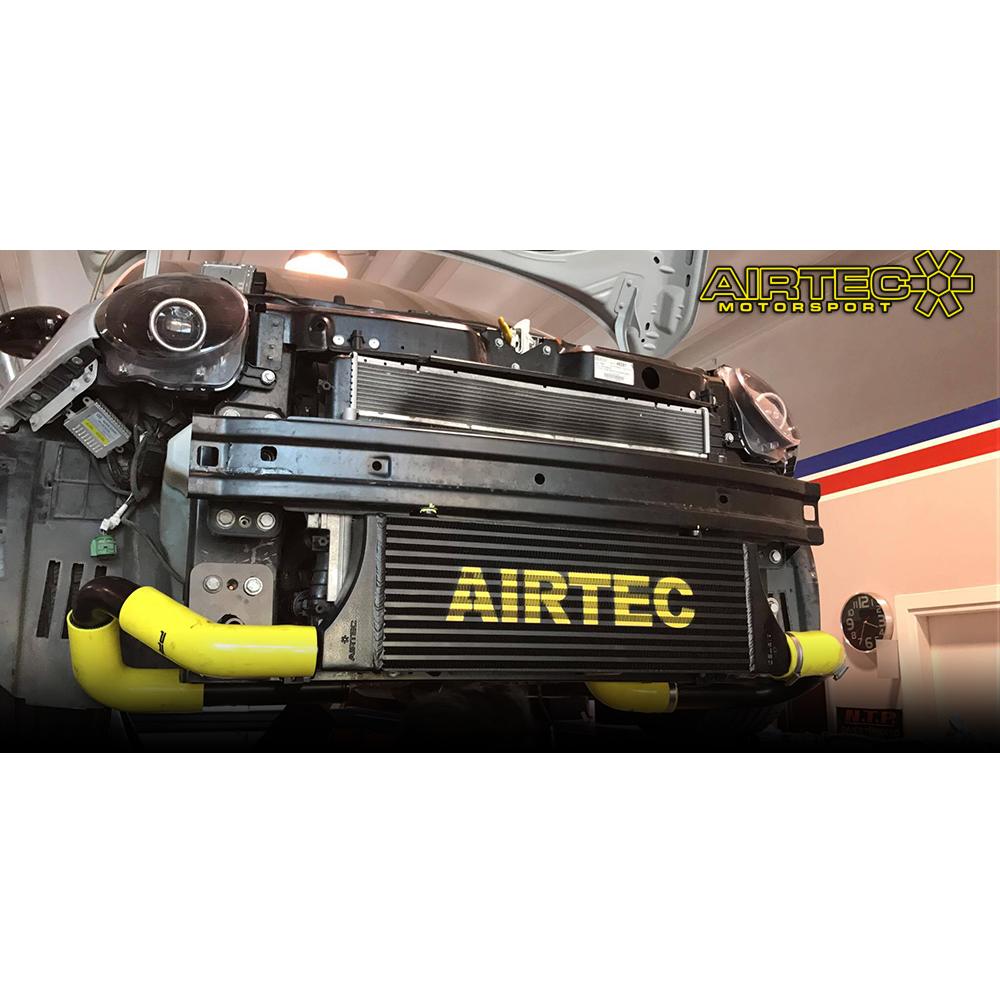

Replaces very restrictive twin intercooler setup and lengthily pipe-work, for AIRTEC’s high flow 60mm core intercooler and shortened alloy pipe kit, we keep fast turbo spool up by using 50mm pipe-work into the turbo and 60mm out of the turbo to help match the throttle body, this combination gives fast turbo spool up and maximum power output

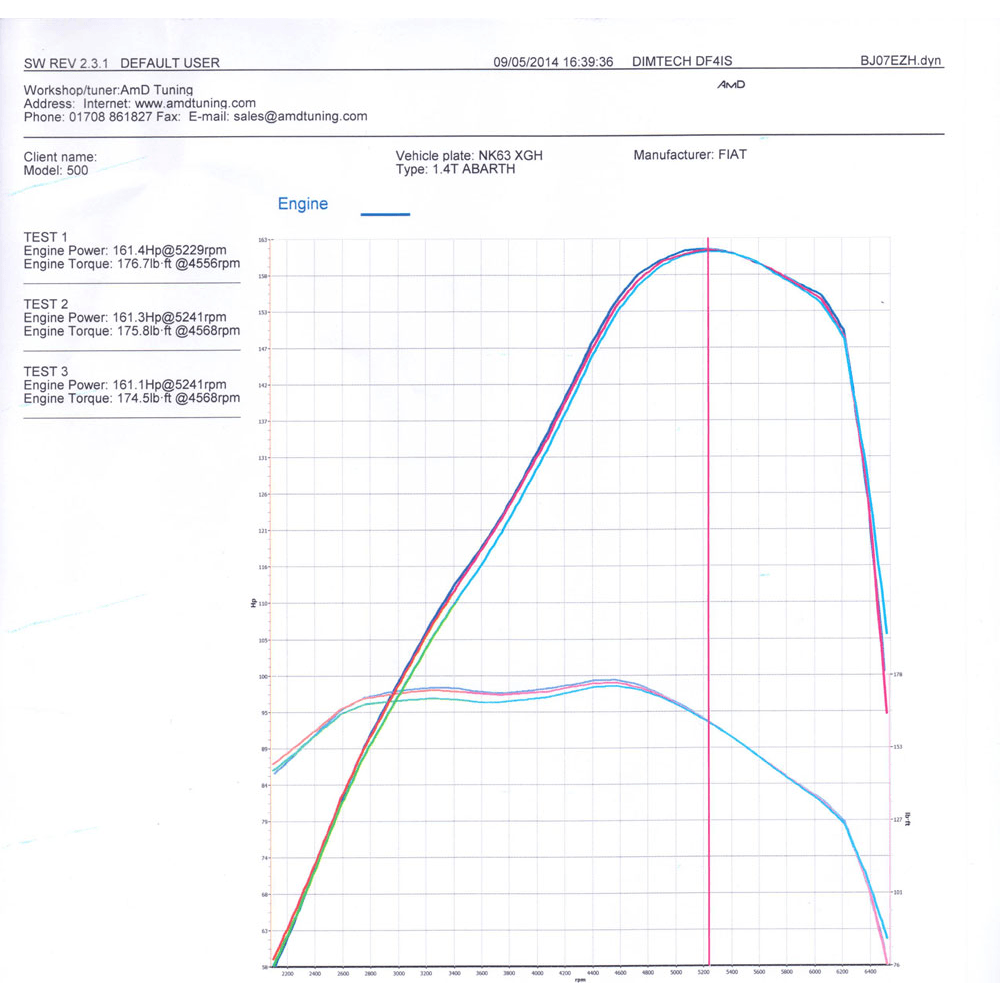

- Dyno test results – results taken from Fiat 500 Abarth, fitted with cat back exhaust and AIRTEC FMIC
- Run 1. 120 degree into the intercooler and 22 degree out of the intercooler
- Run 2. 122 degree into the intercooler and 22 degree out of the intercooler
- Run 3. 123 degree into the intercooler and 22 degree out of the intercooler
- Conclusion, the AIRTEC intercooler dropped the intake tempertures by 100 degree on each run and did not suffer from heat soak.
Features:
- 60mm thick proven bar and plate core, specced to AIRTEC design
- AIRTEC logo’d Cast end tanks for improved Airflow and un-beatable stength
- Dyno proven, gain BHP
- Lower intake temps means safer engines ‘FACT’
- Shorter charge pipes than standard twin intercooler set-up, short pipes mean fast turbo spool up
- Fitting takes 2-3 hours
- 3 year un-limited mileage warranty
- Available in Pro-Series satin Black or Natural Silver
- AIRTEC logo available @ no extra charge
- Un-beatable value for money
Will fit Abarth 500 / 595 models fitted with the IHI turbo – 135, 140, 145 & 160 bhp models
Height – 205mm
Width – 820mm
Thickness – 65mm
Registered Design Right number: 6023445
