Technical Data
As part of our expanding BMW platform product range, AIRTEC Motorsport is proud to launch our auxiliary charge cooler radiator upgrade aimed at BMW M5 F10 models for fast road or track use.
AIRTEC Motorsport’s solution to improving the original set up is utilise the available space behind the front bumper and develop a direct replacement radiator that’s wider, taller and thicker. This means capacity is increased by a 39% over standard, whilst frontal area is increased by 17% to help cool the extra capacity.

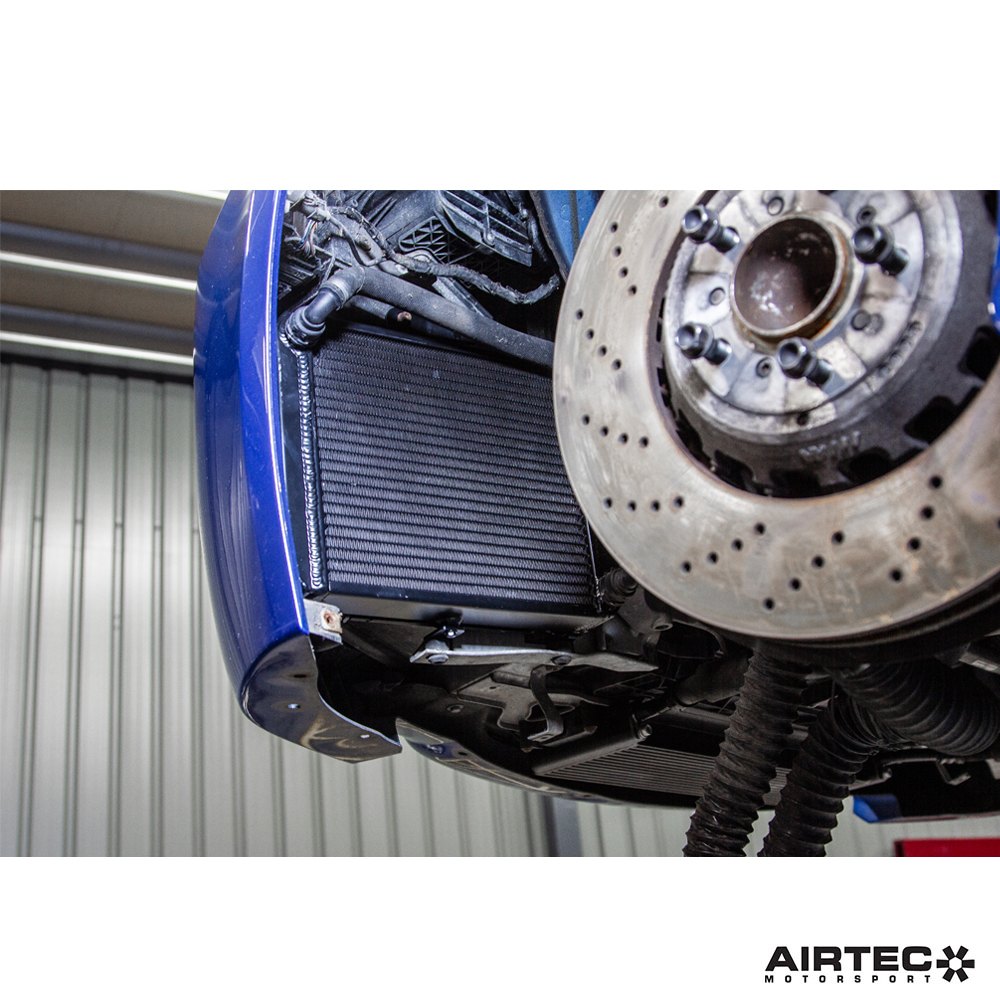

Despite the significant increases, the radiator fits neatly behind the bumper and requires no modifications to fit, using the OEM mounts and the original coolant connectors.

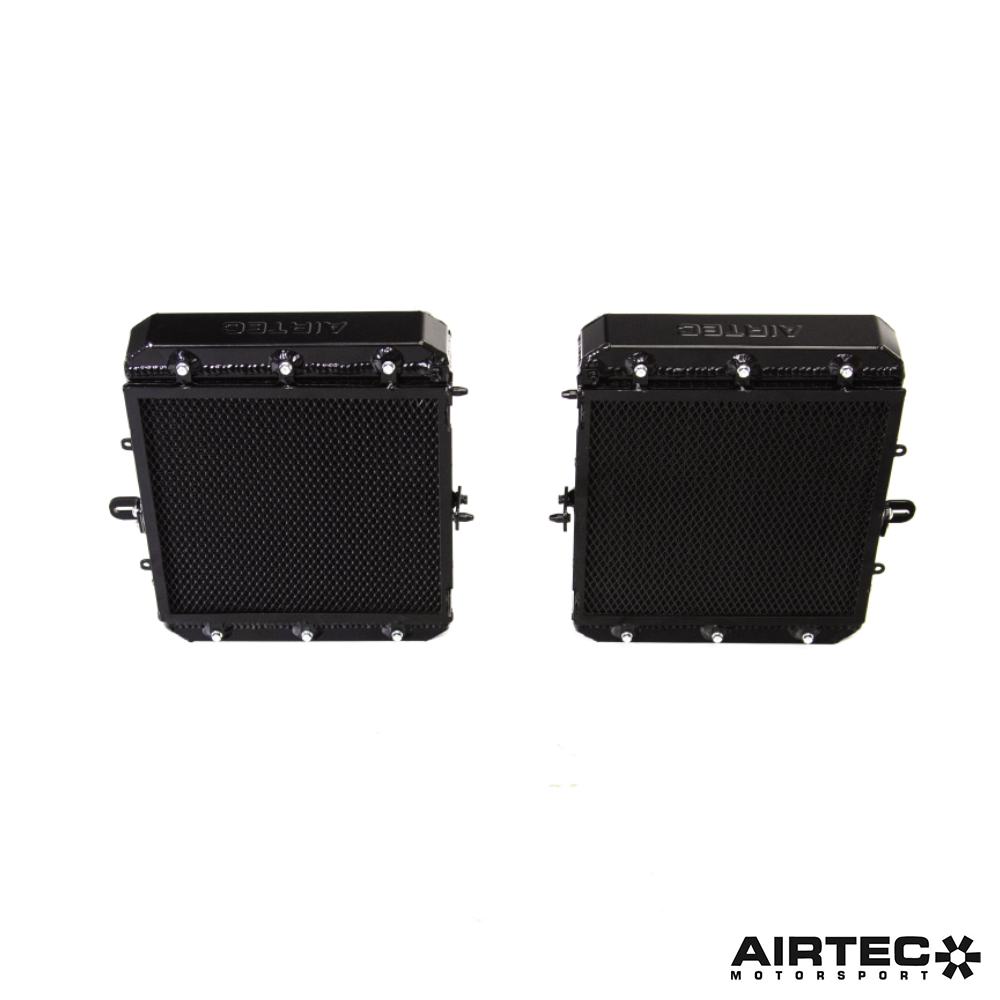

Furthermore, to protect the larger core in its vulnerable position at the front of the car, there is also a mesh stone guard fitted in place, as OEM radiators can often become damaged over time, which limits their cooling ability.
Finished in a high-quality powder-coated black finish, the fitting kit includes a detailed installation guide.
PLEASE NOTE: Left and right-hand sides are determined from looking into the engine bay. Available as a pair, or individually.
Dimensions:
OEM radiator:
Width: 240mm
Height: 250mm
Depth: 42mm
Capacity: 2.52 litres
Frontal area: 600cm²
AIRTEC Motorsport radiator:
Width: 265mm
Height: 265mm
Depth: 50mm
Capacity: 3.51 litres
Front area: 702cm²
Fitment:
Replaces BMW part numbers: 17112284277 and 17112284278
5-Series:
M5 – F10 (S63)
6-Series:
M6 – F06 Gran Coupé (S63)
M6 – F12 (S63)
M6 – F13 (S63)
Features:
-
39% increase in capacity to the original charge cooler radiator
-
17% increase in frontal area to help cool the extra capacity
- Direct fit with no cutting or trimming required
- Stone guard mesh included to protect the core
- Comprehensive fitting guide included
AIRTEC part no: ATRADBMW12
