Description

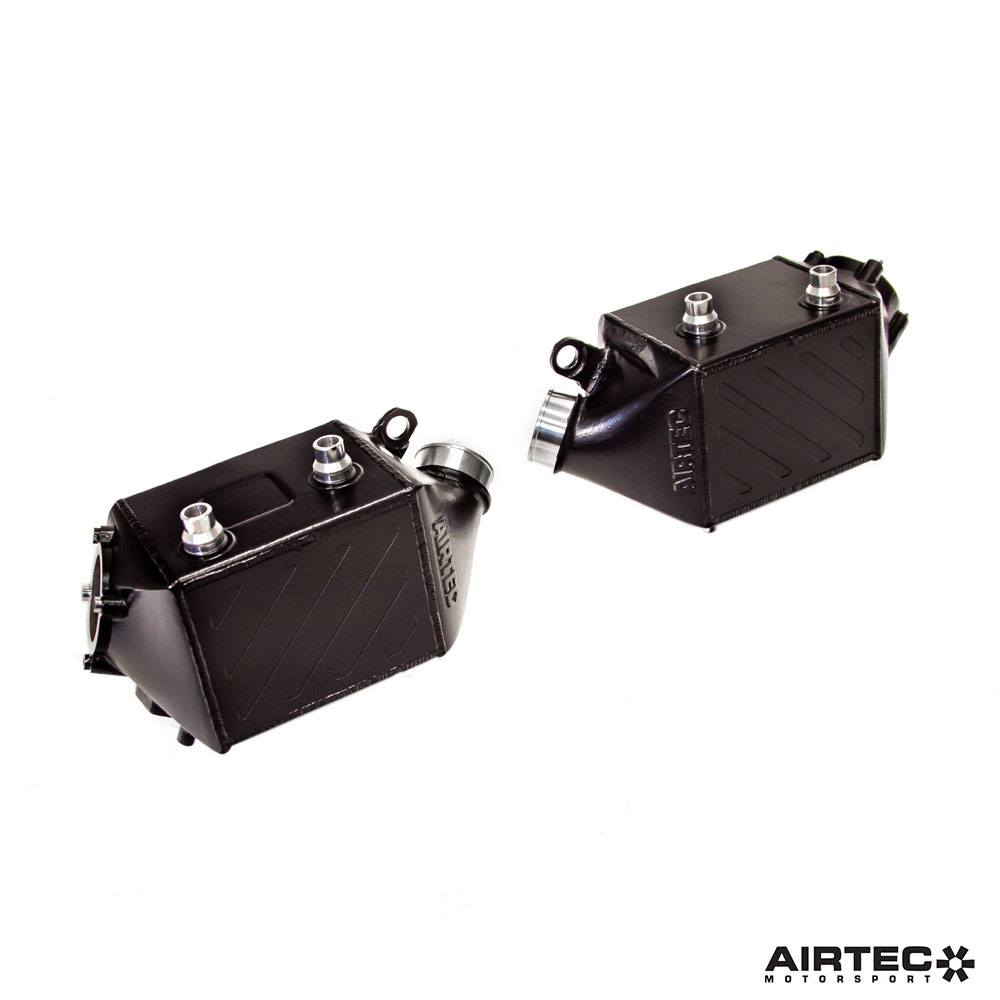

Developed at AIRTEC HQ in the UK, we’re proud to launch our revised charge cooler kit aimed at modified BMW M5/M6 F10/F12 models for track or fast road use.
Our redesign now features the biggest core available on the market, ensuring it offers the best possible performance benefits and resistance to power-reducing heat soak.
The dimensions of the core speak for themselves; boasting a huge 39% increase in volume over standard and 37% increase in frontal area over standard.
Featuring cast aluminium, freer flowing end tanks to help improve air flow distribution across the full width of the core, the kit utilises the original top mount location and therefore retains the original boost and coolant connectors.
Finished in a high-quality black powder coat, the kit also comes with all fixtures and fittings required for installation, as well as detailed fitting instructions.
Whilst these design features will benefit any standard or tuned example, these aspects become much more prominent in highly modified vehicles that require vastly improved cooling abilities in order to maintain charge temperatures and perform.
Our charge cooler’s improved cooling efficiency and straightforward fitment makes it an ideal modification for all modified BMW M5/M6 F10/F12 models.
Dimensions:
OEM Charge Cooler
Width
128mm
Length
153mm
Depth
134mm
Volume
2.62 litres
Frontal Area
19.6cm²
AIRTEC Motorsport Charge Cooler
Width
145mm
Length
185mm
Depth
140mm
Volume
3.65 litres
Frontal Area
26.8cm²
Fitment:
- F10 M5 (06/2010 — 10/2016)
- F06 M6 Gran Coupé (10/2011 — 09/2018)
- F12 M6 (03/2011 — 05/2018)
- F13 M6 (03/2011 — 10/2017)
Features:
- 39% increase in capacity compared to original
- 37% increase in frontal area compared to original
- High-flow, moulded one-piece cast end tanks
- Huge increase in cooling ability & reduced charge temperatures
- Connects to all OEM fittings and fixtures
- High-quality powder coated black finish

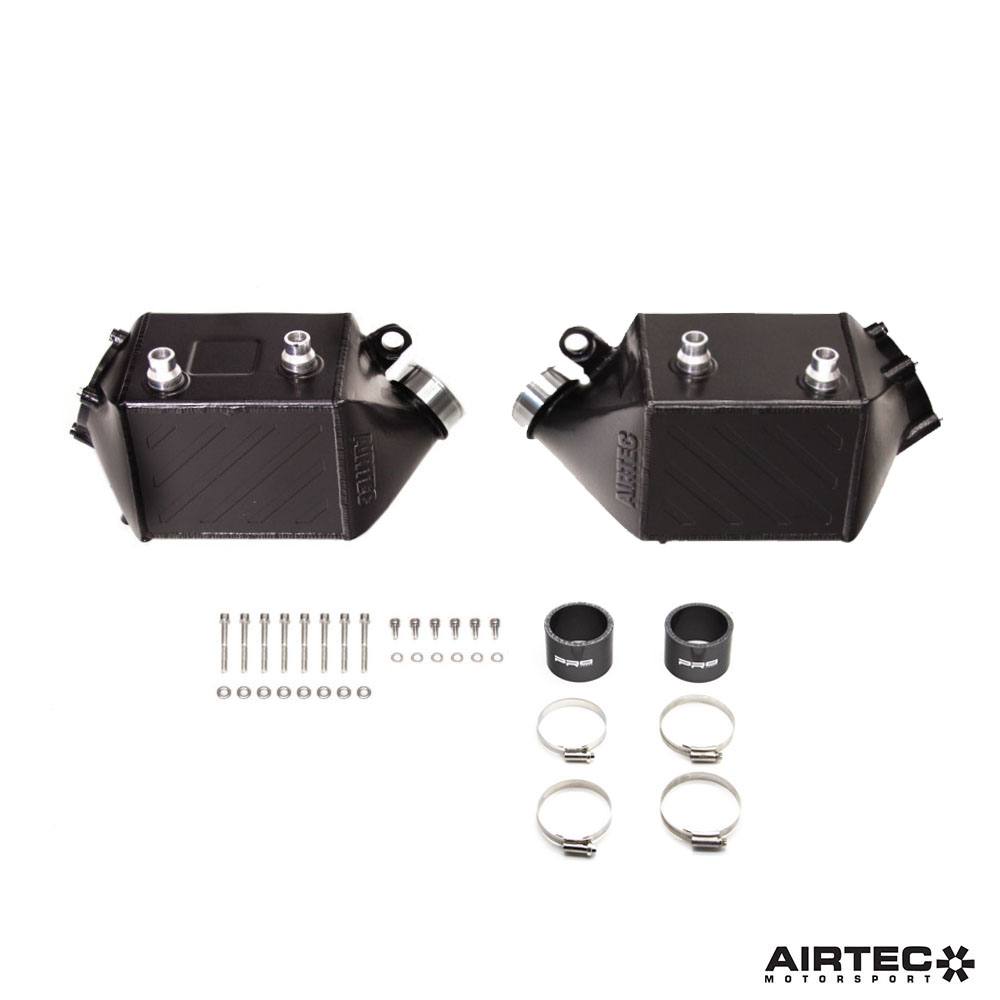

- All fittings and fixtures included
- Comes with detailed fitting guide
AIRTEC part number: ATINTBMW10
