TECHNICAL DATA

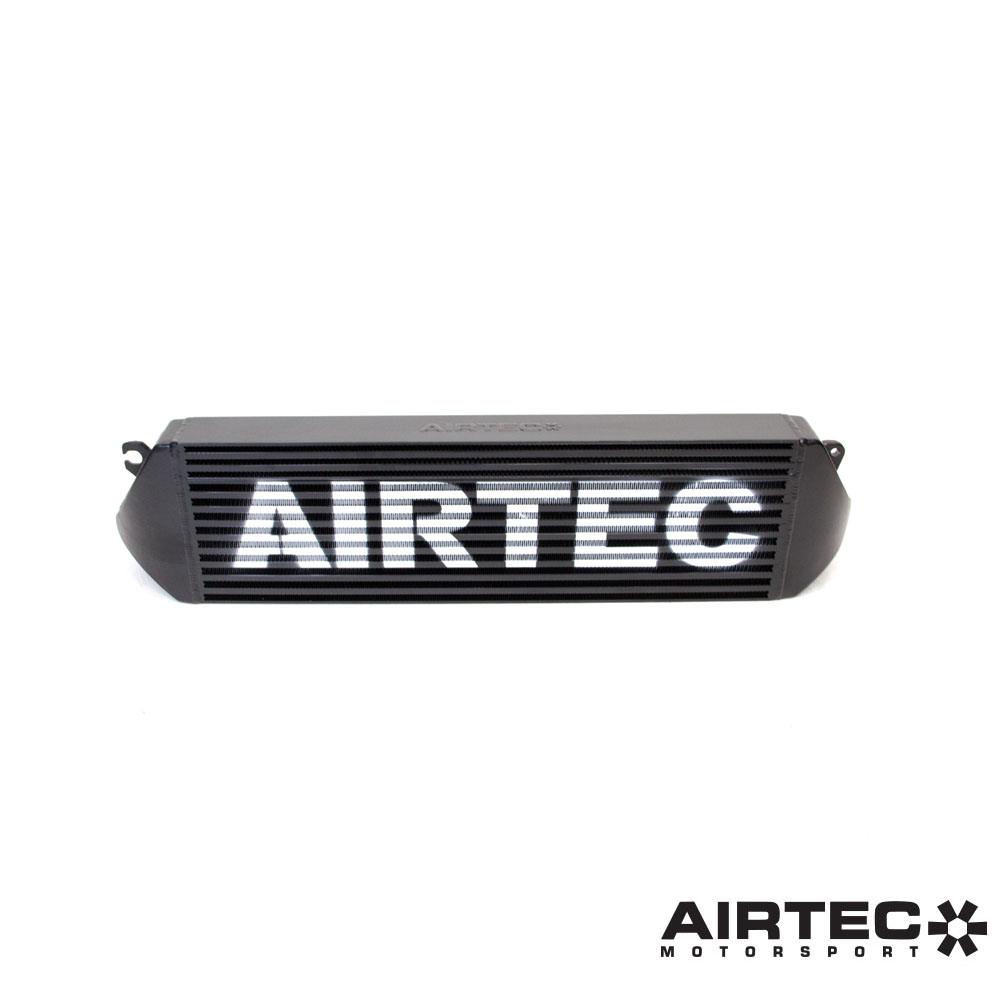

The Yaris GR is the new must-have hot-hatch and has already proven popular with enthusiasts eager to use their cars to their full potential. In order to ensure there is no noticeable loss in performance during extended periods of hard driving on road or track, AIRTEC Motorsport has developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

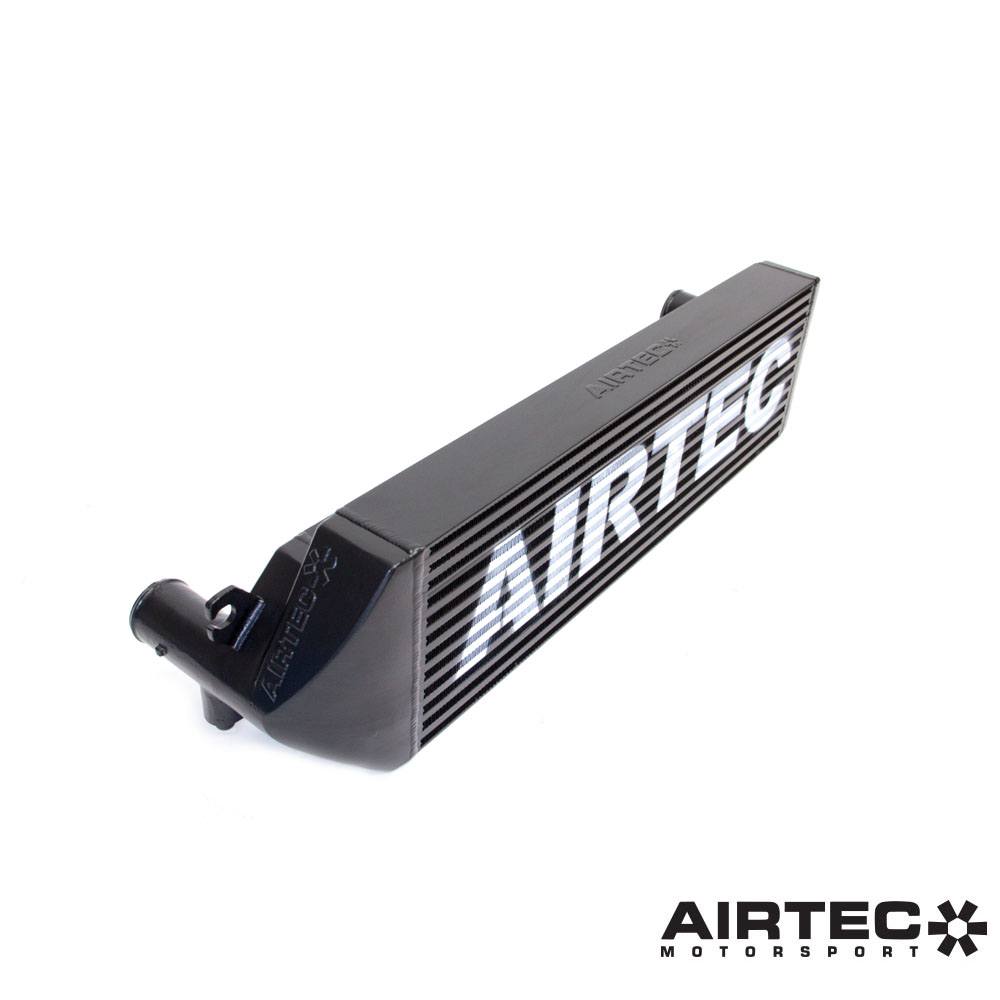

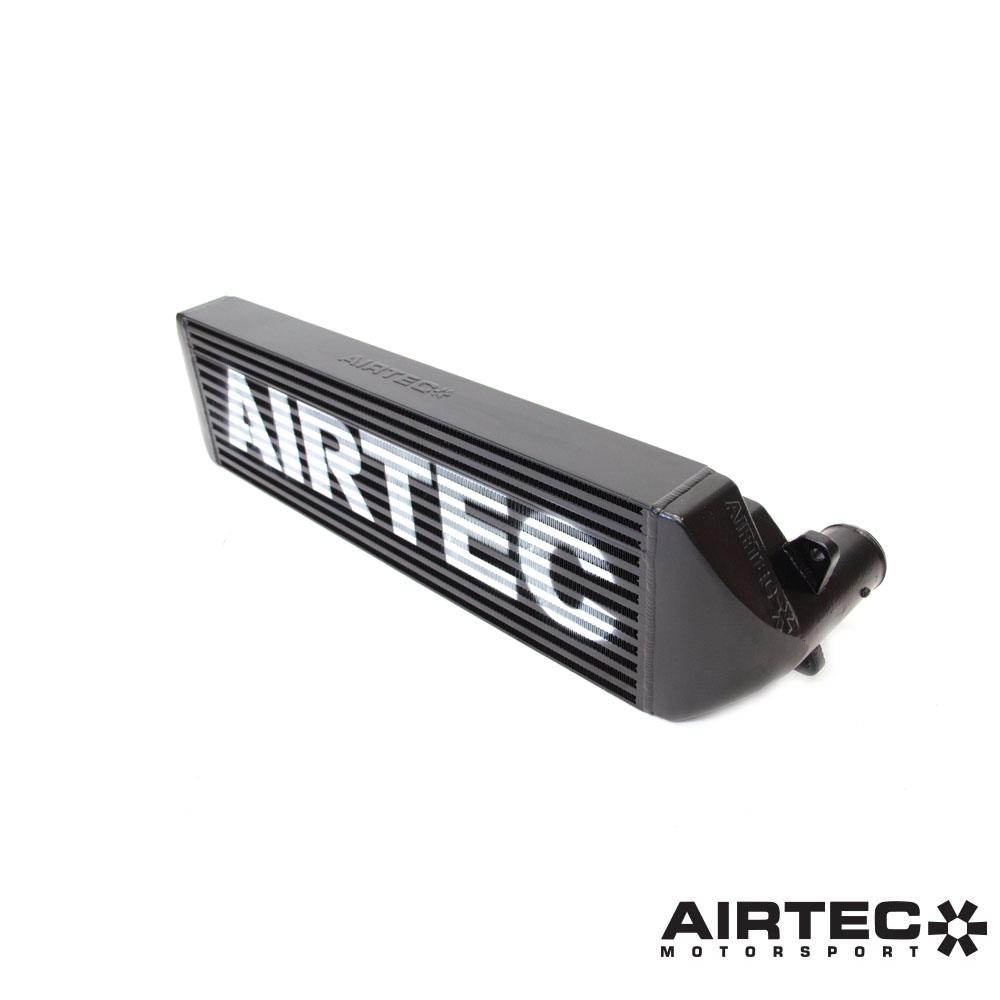

Our solution to increasing the intercooler’s size and performance is based upon our stepped-core design to make the the most of the limited space available behind the bumper. The core steps from 110mm to 70mm and in doing so offers a huge 64% increase in overall capacity in comparison to the original intercooler. It also offers a 30% increase in frontal area over standard, which allows it to make the very most of the air flow provided.
The inlet side of the intercooler retains a 50mm diameter to ensure minimal turbo lag whilst the outlet side increases to 60mm to consistently match the throttle body diameter.
Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

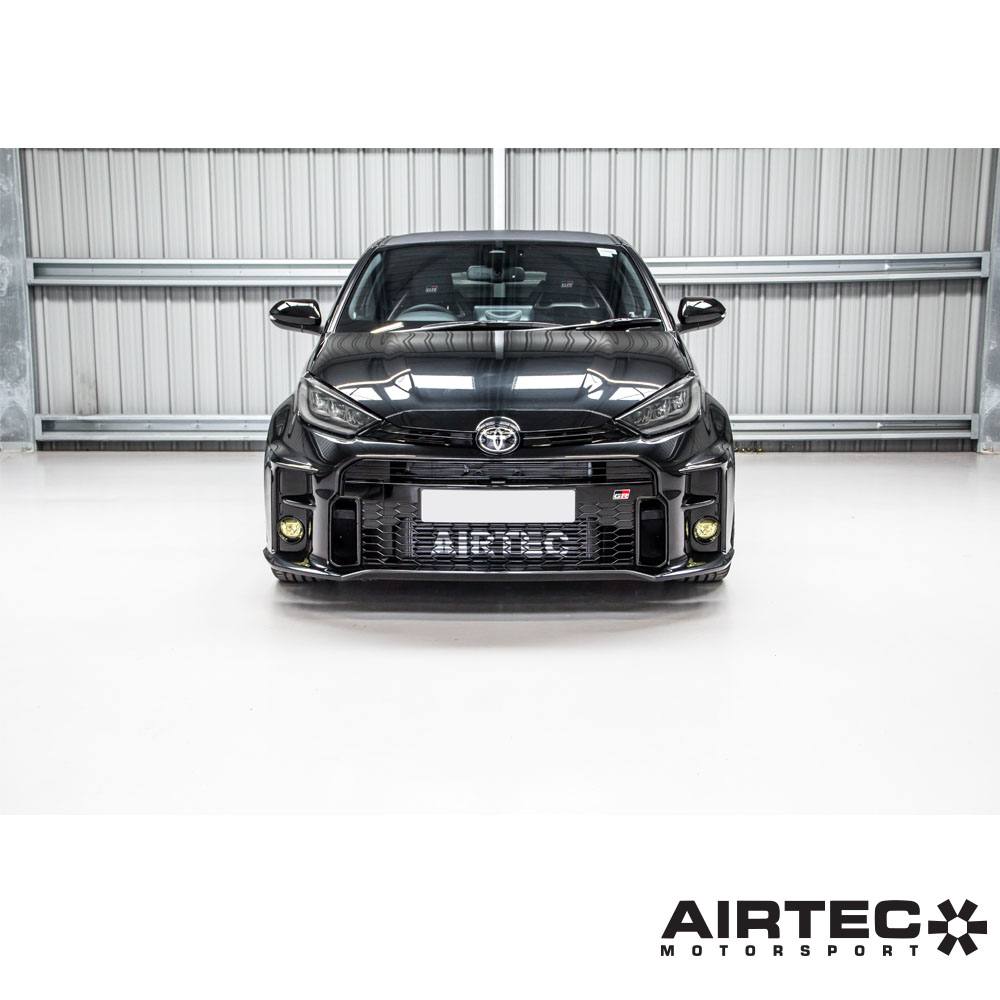

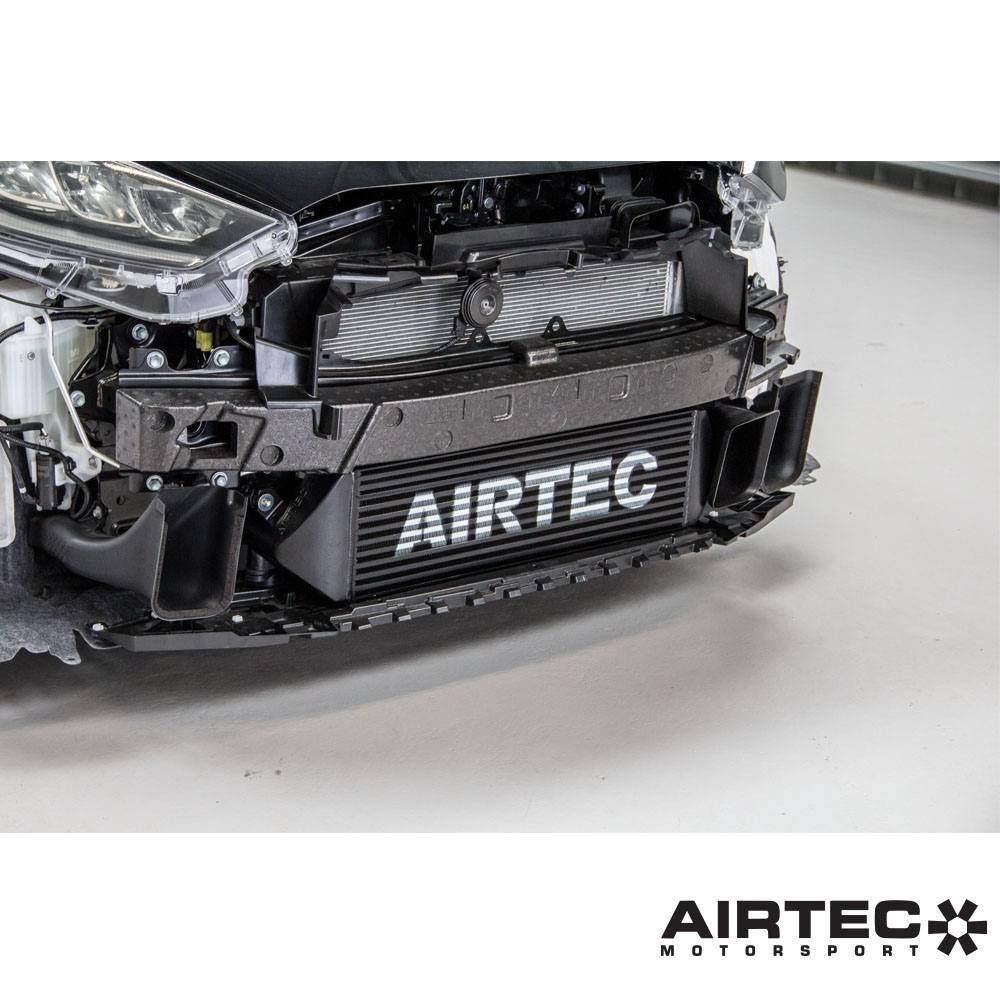

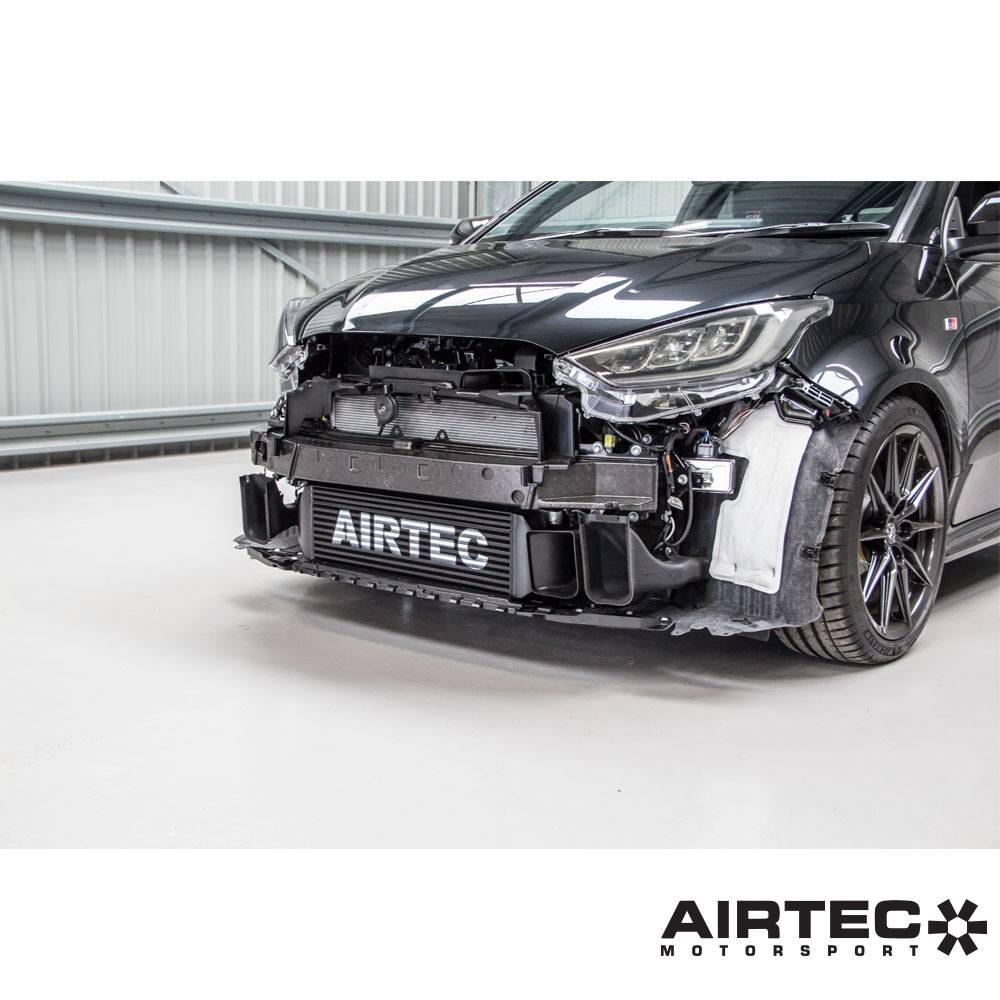

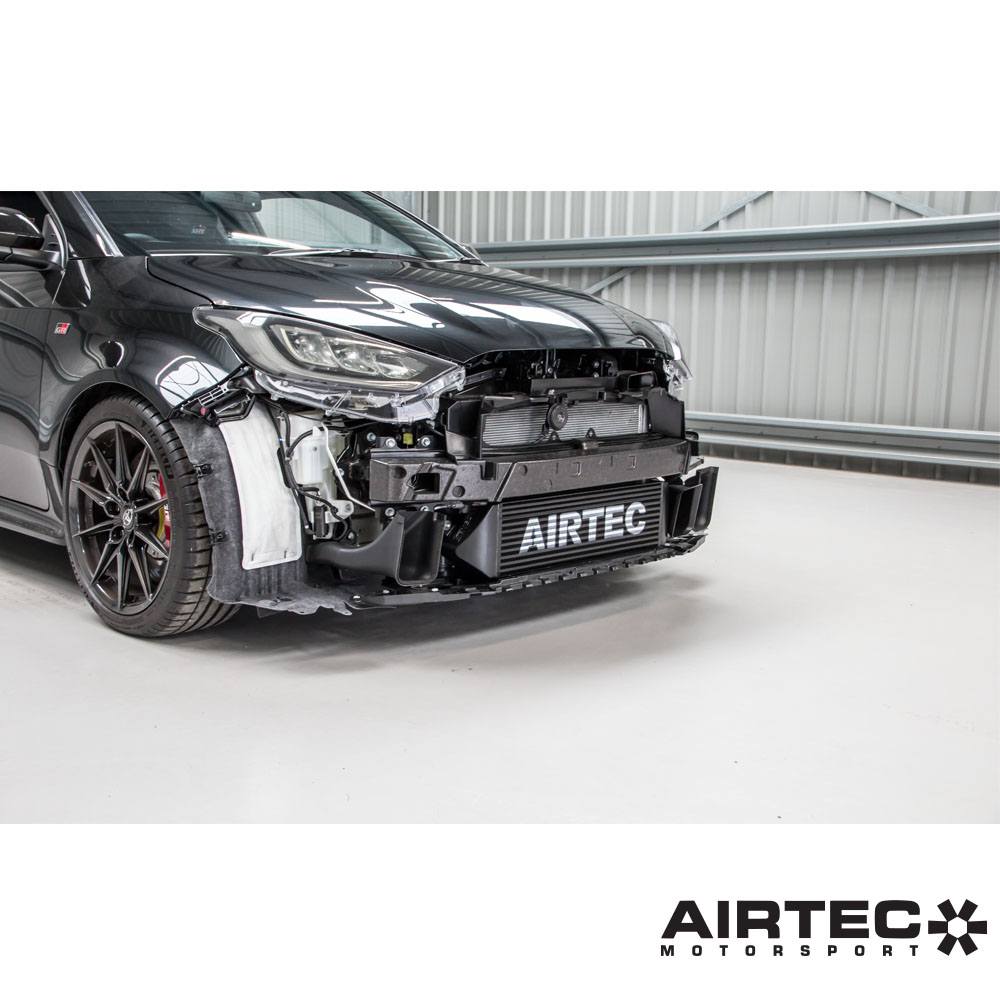

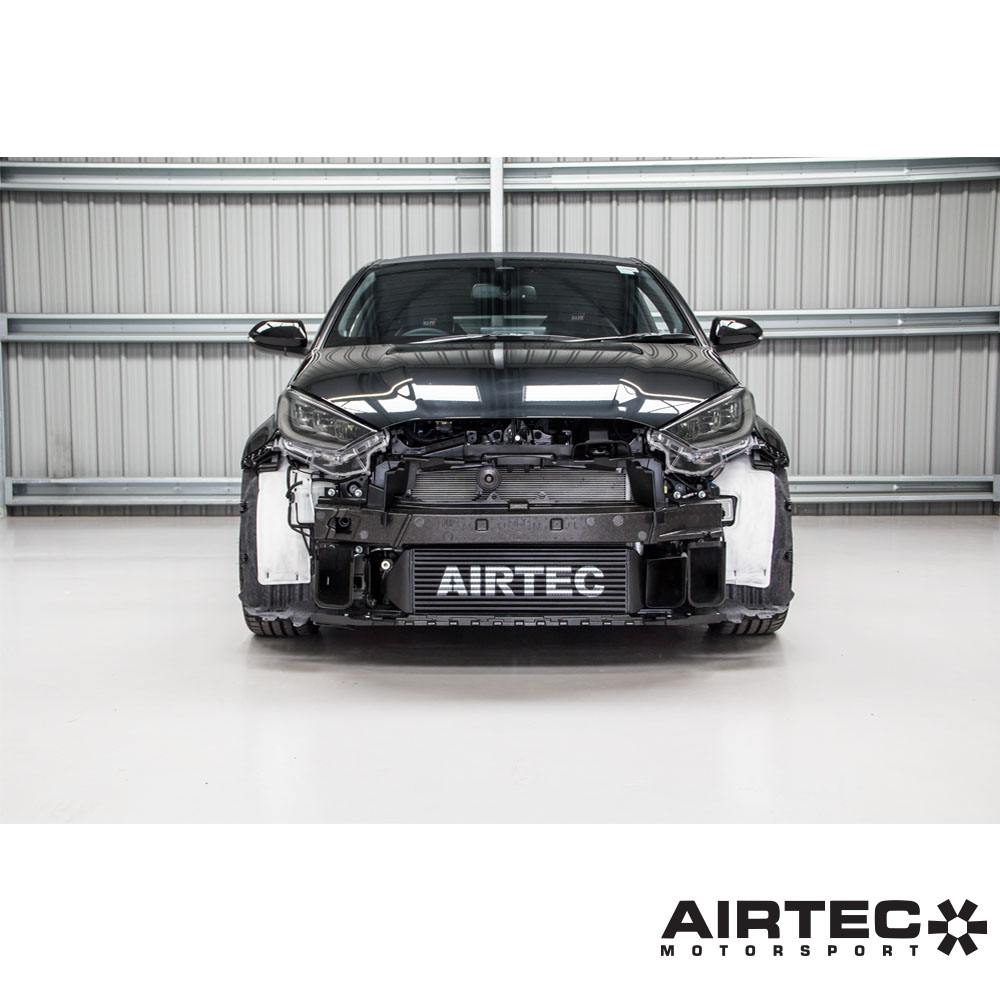

Despite this improvement, the kit fits neatly behind the original bumper and requires no trimming or cutting, and can be reverted back to standard with no issues. The comprehensive fitting kit includes all the correct fixtures and fittings, step-by-step instructions with pictures and Pro-Hoses silicone connectors.
The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo) and gloss black Pro Hoses silicone connectors.
Height – 195mm
Thickness – 160mm/70mm
Width – 610mm
Registered Design Right number: 6154877
