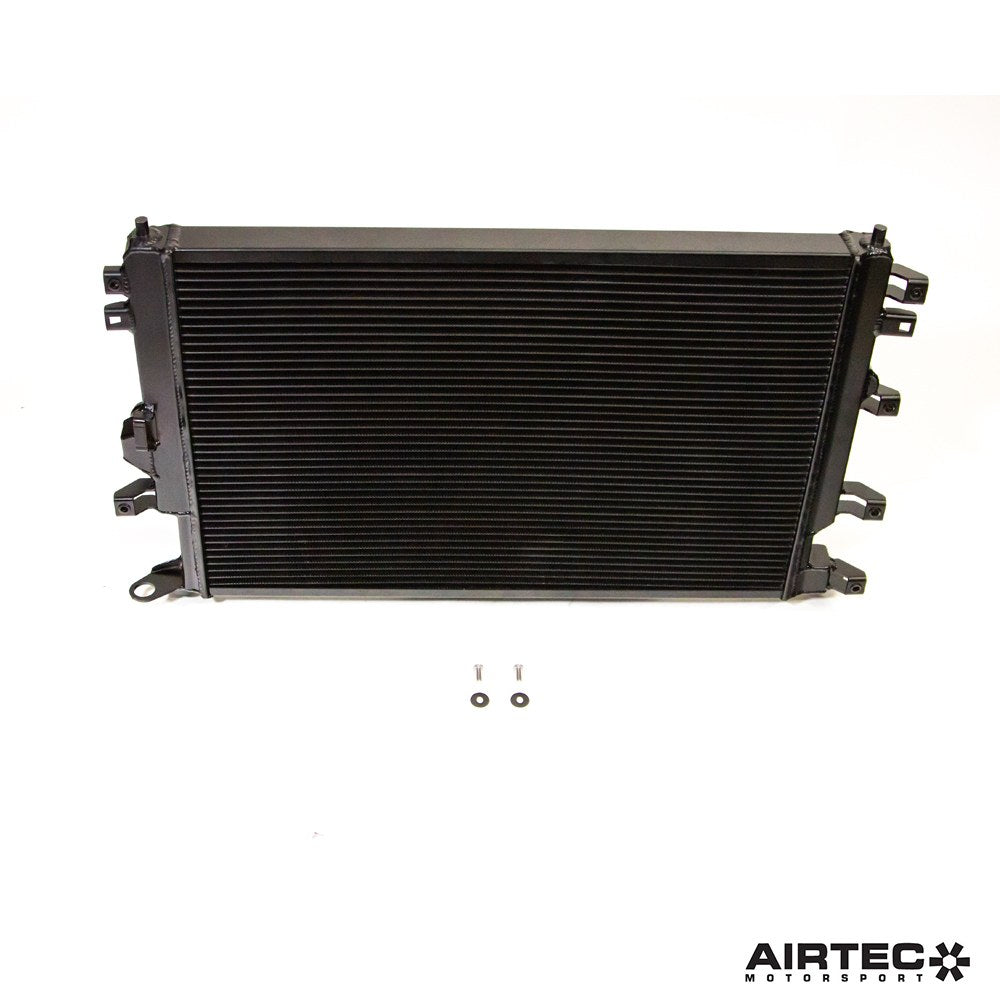

As part of our expanding Toyota product range, AIRTEC Motorsport is proud to launch our replacement uprated radiator for the Yaris GR Gen 1 and Gen 2 models, suitable for track or fast road use.
With huge experience in developing uprated radiators for a variety of modified track and road cars, we chose to create a direct replacement radiator with a much deeper core to make the most of the space available in the original location.
As a result, our radiator offers a huge capacity increase, thanks to a core that measures 48% bigger than the standard Toyota core. Frontal surface area has also increased in size to make the most of the air flow provided.
Our lightweight radiator solution also features a tube-and-fin aluminium construction together with welded aluminium end tanks. This design increases the cooling system’s capacity as well as improving its efficiency, allowing it to retain lower running temperatures compared to an original unit during prolonged or hard use. It’s also suited to modified or track orientated vehicles that operate with constant higher temperatures, or for hotter climate countries, where cooling can be an issue.
Designed as a direct replacement item, fitting is a simple process, making it a great addition to improve cooling.
Dimensions:
Original Toyota Radiator:
Width: 624mm
Height: 410mm
Depth: 28mm
Capacity: 7.16 litres
Frontal Area: 256cm²
AIRTEC Motorsport Radiator:
Width: 624mm
Height: 426mm
Depth: 40mm
Capacity: 10.6 litres
Frontal Area: 266cm²
Features:
- 48% increase in capacity over original Toyota radiator
- Increased frontal area for improved air flow
- Larger 40mm tube-and-fin core design
- Lightweight aluminium construction
- Improved cooling efficiency
- Connects to original mounts and connectors
- Comes with detailed fitting instructions
- Direct replacement with no cutting or trimming
AIRTEC part number: ATRADYGR3
