All too often OEM components sacrifice performance in an effort to appeal to a wide variety of customers. While an enthusiast typically wants better boost response and more power, all while hearing the turbocharger breathe, a non-enthusiast may give up these characteristics for a quieter ride. Give your 8Y RS3 the performance it deserves and engage with your car for a more enjoyable driving experience!
In the case of the factory turbo inlet pipe, mounted between the compressor housing and air intake hose, its purpose is to channel air from the inlet hose into the turbocharger inlet, all while reducing engine bay acoustics. With the ECS 8Y RS3 Big Bore Turbo Inlet Pipe, the factory inlet pipe is removed and replaced with our straight-through, cast aluminium inlet.
PART DESIGN
-
Inlet Elbow is made from cast aluminium for maximum airflow capacity, durability and is designed to work in combination with ECS intakes.
-

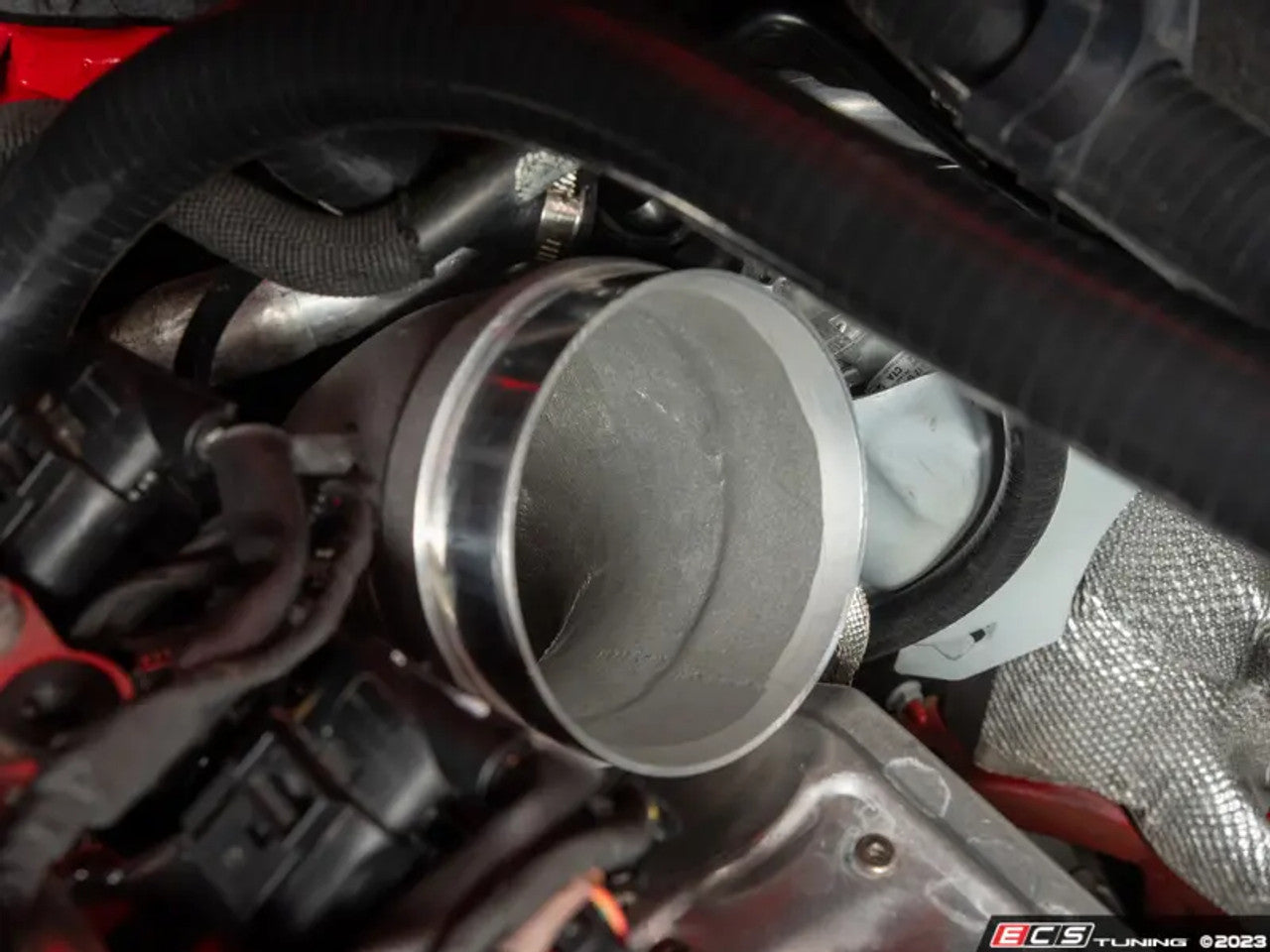

Compressor Inlet Flange is machined after casting to create a bellmouth inlet design for smooth air entry into the compressor housing. The CNC inlet flange also features OEM mounting holes, it also utilizes a sealing O-ring for perfect fit and seal for precision fitment within the compressor housing.
-
Retains OEM PCV port for a direct bolt on fit
-
Cast mounting tabs retain compatibility with the OEM locating fastener and its mounting location.
-
Designed to work in perfect harmony with ECS Tuning Intake Systems
-
Will work with any intake system with a 4" outlet
-
PERFORMANCE FEATURES
-
101mm inlet opening, a 23mm increase over the stock inlet size (78mm)!
-
17% increase in air flow over the factory 8Y RS3 turbo inlet pipe
-
Stock 8y RS3 turbo inlet pipe - 491CFM @ 25inH2O
-
ECS Big Bore Turbo Inlet Pipe - 560CFM @ 25inH2O
-
PRODUCT DEVELOPMENT
-
Our ECS Big Bore Turbo Inlet Pipe was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modelling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
NSTALLATION AND SUPPORT
-
Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! Head over to our YouTube channel for the full video @ ECS Tuning and check out our Installation PDF under the INSTALLATION Tab for more information.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
Cross Reference
- 07K 133 359 M
All too often OEM components sacrifice performance in an effort to appeal to a wide variety of customers. While an enthusiast typically wants better boost response and more power, all while hearing the turbocharger breathe, a non-enthusiast may give up these characteristics for a quieter ride. Give your 8Y RS3 the performance it deserves and engage with your car for a more enjoyable driving experience!
In the case of the factory turbo inlet pipe, mounted between the compressor housing and air intake hose, its purpose is to channel air from the inlet hose into the turbocharger inlet, all while reducing engine bay acoustics. With the ECS 8Y RS3 Big Bore Turbo Inlet Pipe, the factory inlet pipe is removed and replaced with our straight-through, cast aluminium inlet.
PART DESIGN
-
Inlet Elbow is made from cast aluminium for maximum airflow capacity, durability and is designed to work in combination with ECS intakes.
-
Compressor Inlet Flange is machined after casting to create a bellmouth inlet design for smooth air entry into the compressor housing. The CNC inlet flange also features OEM mounting holes, it also utilizes a sealing O-ring for perfect fit and seal for precision fitment within the compressor housing.
-
Retains OEM PCV port for a direct bolt on fit
-
Cast mounting tabs retain compatibility with the OEM locating fastener and its mounting location.
-
Designed to work in perfect harmony with ECS Tuning Intake Systems
-
Will work with any intake system with a 4" outlet
-
PERFORMANCE FEATURES
-
101mm inlet opening, a 23mm increase over the stock inlet size (78mm)!
-
17% increase in air flow over the factory 8Y RS3 turbo inlet pipe
-
Stock 8y RS3 turbo inlet pipe - 491CFM @ 25inH2O
-
ECS Big Bore Turbo Inlet Pipe - 560CFM @ 25inH2O
-
PRODUCT DEVELOPMENT
-
Our ECS Big Bore Turbo Inlet Pipe was designed, engineered, tested and quality inspected by our Research and Development team in our Wadsworth, Ohio facility. We strive for the highest level of precision and quality through leading edge product development technology including FARO laser scanning for reverse engineering and quality inspection, SolidWorks 3D CAD modelling, rapid prototyping utilizing our in-house 3D printer, and rigorous long term product testing.
NSTALLATION AND SUPPORT
-
Looking for installation tips? Look no further, we put together a full installation tutorial from start to finish including how to remove your OEM parts in detail! Head over to our YouTube channel for the full video @ ECS Tuning and check out our Installation PDF under the INSTALLATION Tab for more information.
Not for sale or use in the state of California on any pollution-controlled vehicle as per the California Air Resources Board.
Cross Reference
- 07K 133 359 M
