IE's carbon fiber intake system for your B9 SQ5 is meticulously designed to improve turbo & engine efficiency and engineered for significant airflow gains on stock and hybrid turbochargers while keeping IATs to a minimum. Unique motorsport features produce power gains of up to 19HP & 21ft-lbs on tuned engines, making it the ultimate intake system that delivers style, sound, and power for your turbocharged SUV.
IE's carbon fiber intake system for your B9 SQ5 is meticulously designed to improve turbo & engine efficiency and engineered for significant airflow gains on stock and hybrid turbochargers while keeping IATs to a minimum. Unique motorsport features produce power gains of up to 19HP & 21ft-lbs on tuned engines, making it the ultimate intake system that delivers style, sound, and power for your turbocharged SUV.
ONE-PIECE
CARBON FIBER
CONSTRUCTION
UP TO
+19HP & 21TQ
POWER YOU CAN FEEL
FLOW OPTIMIZED
VELOCITY STACK
MOTORSPORT DESIGN
LEADING FEATURES

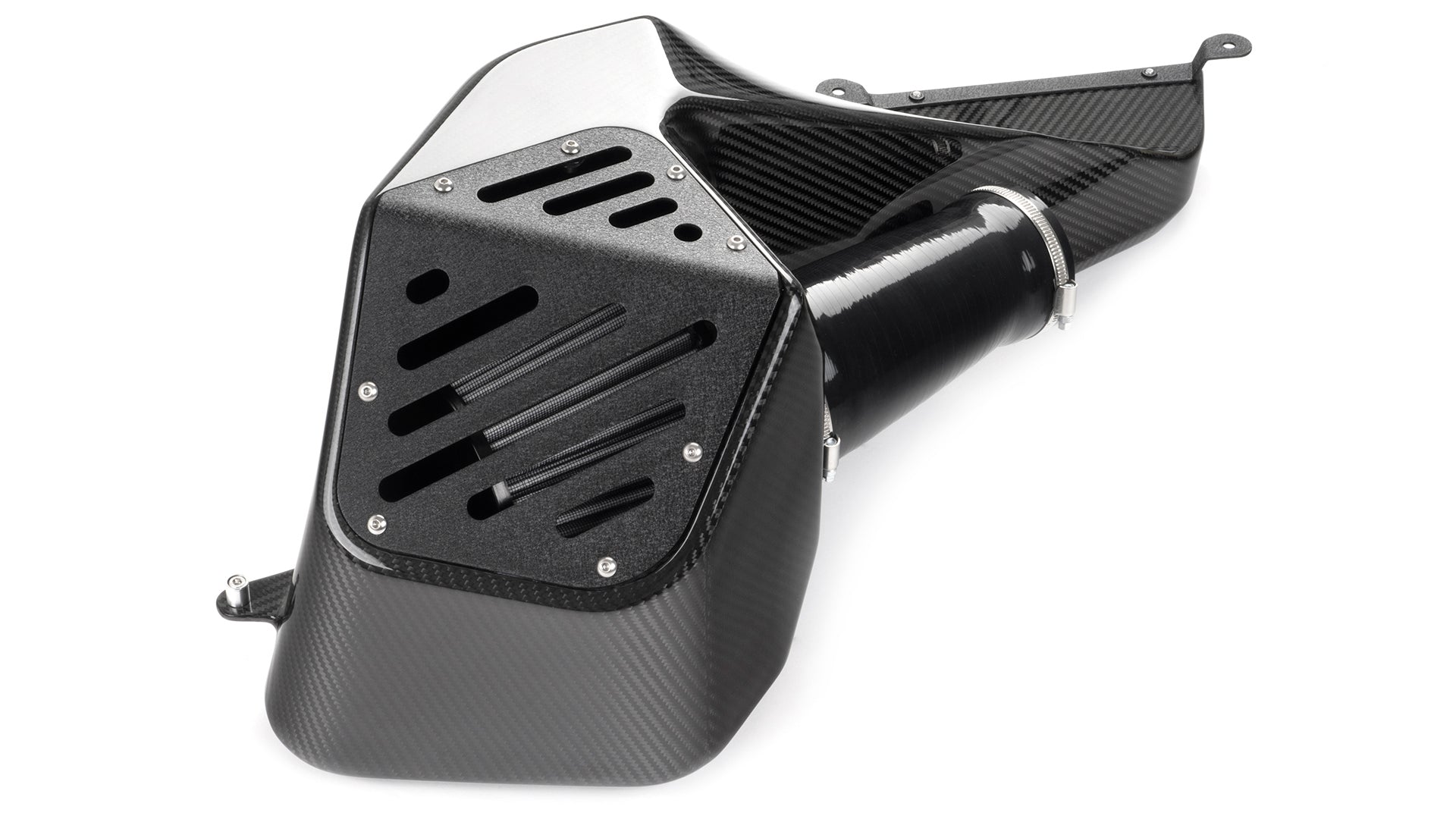

- High-gloss genuine carbon fiber construction
- Leak-free seamless 1-piece airbox
- Up to 19HP & 21ft-lbs over stock (with IE turbo inlet)
- Flow 28% more than the stock intake system
- Flow 44.2% more than stock intake (with IE turbo inlet)
- Enhanced turbo & engine sound
- High pressure & low pressure air zones
- Maximized turbo & engine efficiency
- Huge 5" air filter & velocity stack for excellent laminar flow
- Factory style mounts for reliable & easy installation
- All stainless hardware
- Multi-ply silicone with stop-flat edges
- High-quality clamps
- Powder-coated aluminum filter plate
- Stainless laser-etched logo plate
CARBON FIBER - MORE THAN STYLE
Carbon fiber allows our engineers to create complex shapes and angles to maximize internal volume while maintaining high resistance to heat. This design practice utilizes every millimeter available in the engine bay, providing a much larger air supply and smooth flow.

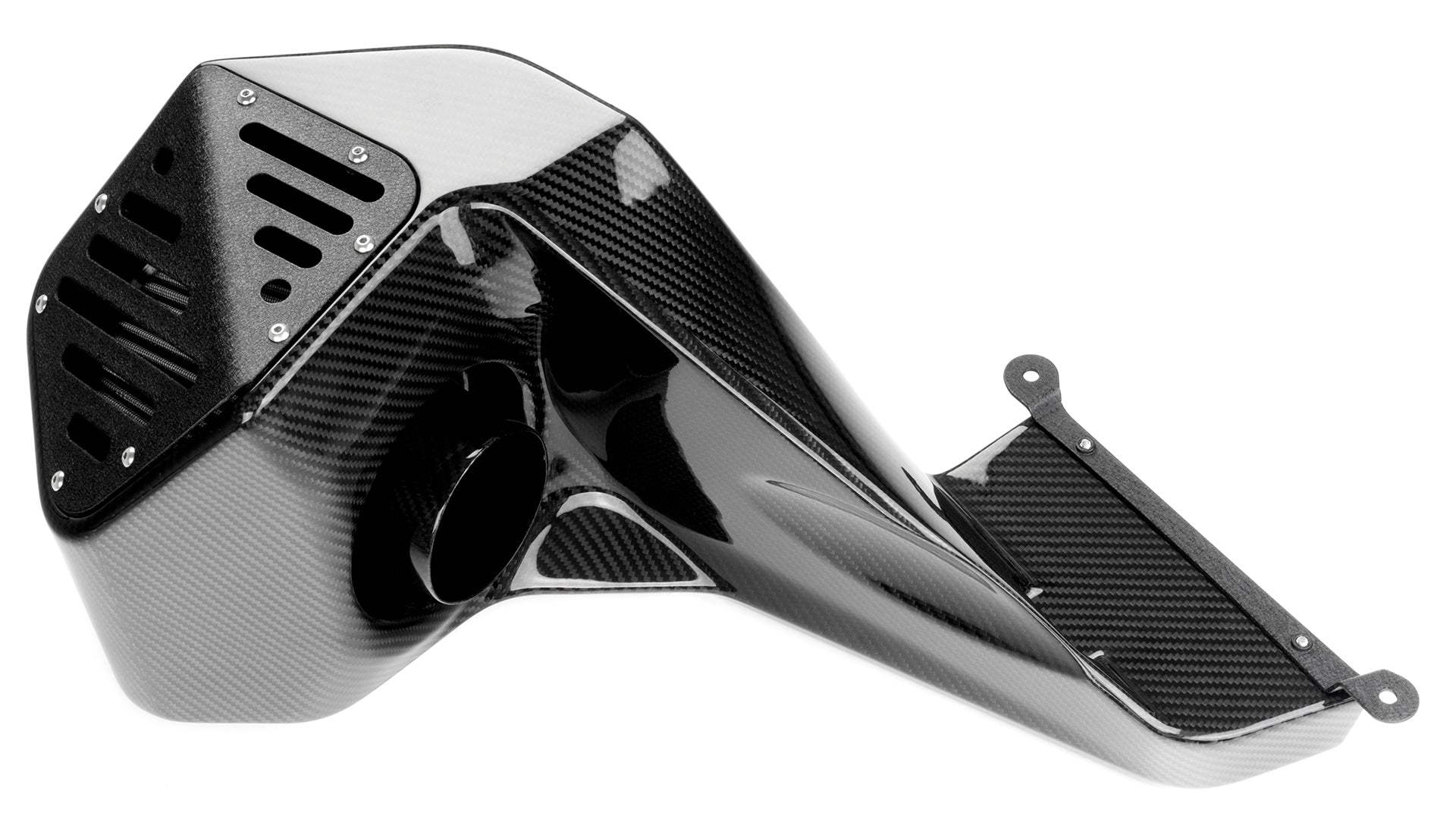

SEAMLESS DESIGN
Our unique 1-piece airbox design offers a seamless and beautiful look without chances of air leaks, finicky installation, rubbing noises, or parts working loose over time, common with multi-peace airbox designs.
BUILT-IN VELOCITY STACK
The built-in velocity stack smoothly reduces airflow from the massive 5" air filter down to the turbo inlet with excellent laminar properties. This transition creates a very high inertia flow from the huge filter with very low drag or power-robbing turbulence.
MULTIPLE PRESSURE ZONES
The intake takes advantage of multiple air supply avenues to support any power level. The front large air inlet receives outside high-pressure flow from the front of the grille and acts as a ram air design for most of the air supply. Additionally, the filter plate louvers pull extra required air from the low-pressure zone under the intake. These dual zones provide a free air supply across the entire filter and ensure your intake will never be a power limiter for even the most extreme builds.
UNIQUE SOUND
Your sporty SUV is equipped with a 6-cylinder turbocharged engine -sound like one!
The factory airbox is designed to mute all engine and turbo sounds. When upgrading to an IE intake system, you will instantly become addicted to the new turbocharger spool, engine throttle, and diverter valve symphony under the hood. Your SQ5 won't only pull harder, it will also sound classy, refined, and powerful.
OPTIONAL TURBO INLET (COMING SOON)
Upgrading your intake with an IE cast turbo further removes significant airflow restrictions and maintains the largest size possible from the intake to the turbocharger. This combination increases flow from 28% (intake only) up to 57.6% over the stock intake and turbo inlet! Turbo inlet pipe is an optional upgrade and can be purchased with your intake or added at a later date.
IE B9 SQ5 Turbo Inlet Pipe is in production and coming soon!
PRECISION FIT
3D scanning tools are leveraged to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. These high-resolution scans provide a digital environment that allows our engineers to take advantage of all available space while ensuring a perfect fit.
POWER RESULTS
Every inch of IE's intake system evolved from countless design revisions, rapid prototyping, flow bench testing, dyno runs, and real-world verification to maximize airflow and performance. The result is an intake system with power gains of up to 19WHP and 21ft-lbs of torque, with even higher gains possible on hybrid turbo setups!
FLOW BENCH TESTING
The proof is in the testing. Back-to-back flow bench results show constant and consistent CFM gains of up to 44.2% CFM over stock! This increase in flow details the intake design's efficiency over the factory parts and capability to provide any required airflow demands from ECU tunes and hybrid turbocharger upgrades.
FLOW REPORT
The following report details the above graph proving the efficiency gain of our performance intake system on the stock turbo.
| -IN. H20 | STOCK INTAKE | IE INTAKE & STOCK INLET | IE INTAKE & IE INLET |
|
-5 |
129 CFM |
165 CFM |
186 CFM |
|
-10 |
198 CFM |
236 CFM |
268 CFM |
|
-15 |
250 CFM |
292 CFM |
333 CFM |
|
-20 |
291 CFM |
345 CFM |
384 CFM |
|
-25 |
330 CFM |
383 CFM |
430 CFM |
|
-30 |
364 CFM |
420 CFM |
474 CFM |
| IE INTAKE & STOCK INLET | IE INTAKE & IE INLET | |
|
MAXIMUM INCREASE: |
+28% @ -5 in. H20 |
+44.2% @ -5 in/H20 |
HYBRID TURBO FLOW REPORT
Upgrading to a hybrid turbocharger demands even more airflow. This flow result represent IE’s intake and inlet upgrades with a hybrid turbo.
| -IN. H20 | STOCK INTAKE | IE INTAKE & IE INLET |
|
-5 |
129 CFM |
200 CFM |
|
-10 |
198 CFM |
312 CFM |
|
-15 |
250 CFM |
386 CFM |
|
-20 |
291 CFM |
447 CFM |
|
-25 |
330 CFM |
504 CFM |
|
-30 |
364 CFM |
553 CFM |
| IE INTAKE & IE INLET | |
|
MAXIMUM INCREASE: |
+57.6% @ -10 in. H20 |
The above gains are a result of various design details:
- The 5" air filter surface area and increased air volume improve turbo efficiency.
- The internal velocity stack provides a low-turbulence transition from the filter to the inlet.
- Carbon airbox high & low-pressure zones channel low-temp airflow quickly to the engine while protecting it from radiant engine heat.
To learn more about these features, click the design tab above.
EASY INSTALLATION
The installation process is quick and straightforward using basic hand tools. The entire airbox system utilizes factory-style mounts that ensure a perfect and hassle-free fit.
Intake install time: 1 hour or less
VEHICLE FITMENT GUIDE
| MAKE | MODEL | YEAR | ENGINE |
|
AUDI |
SQ5 |
2018+ (B9) |
3.0T Turbocharged |
