K&N Oil Filter Spin-On – SO-1002 - Multiple Vehicle Fitment - See Description

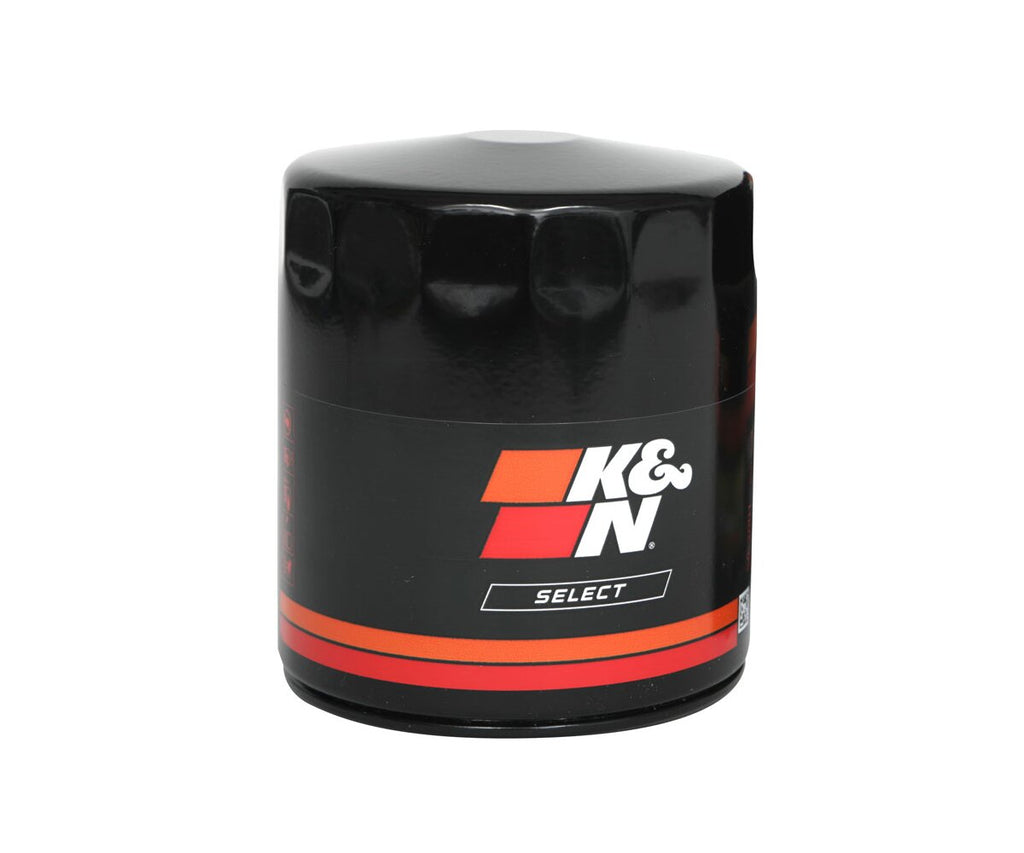

K&N Select Oil Filter – Spin-On (SO-1002)

The K&N SO-1002 is a spin-on oil filter from the K&N Select range, designed to offer reliable engine protection with a high-flow construction that helps reduce restriction in the oil system. Less restriction means oil can circulate more freely, which is better for engine health – particularly during cold starts or when the engine is working hard.

The filter uses a pleated media design, which increases the surface area available for filtering. This gives it a higher dirt-holding capacity compared to basic filters, making it well suited to extended oil change intervals – provided you follow the recommendations of your vehicle and oil manufacturer.

The canister features a fluted (ridged) outer shape, making it easy to grip and remove with a standard oil filter wrench. This makes it a practical choice for both home mechanics and professional installers.

Key Benefits

• High-flow design to help reduce oil system restriction
• Compatible with synthetic, conventional and blended motor oils
• Pleated filter media for increased capacity and thorough filtration
• Fluted canister for easy removal with a standard oil filter wrench

To confirm this filter fits your vehicle, please use the vehicle guide at the bottom of this page.

---

Technical Specifications

• Anti Drain Back Valve: Yes
• Bypass Valve: Yes
• Filter Material: High Flow Premium Media
• Gasket Material: Nitrile Rubber
• Height: 3.406 in (87 mm)
• Outside Diameter: 3 in (76 mm)
• Package Material: Paperboard
• Package Type: Box
• Product Box Height: 3.62 in (92 mm)
• Product Box Length: 3.15 in (80 mm)
• Product Box Width: 3.15 in (80 mm)
• Product Style: Oil Filters
• Product Weight: 0.55 lb (0.25 kg)
• Prop 65 Yes/No: No
• PSI Relief Valve: 43040
• Removal Nut: No
• Style: Spin-On
• Thread Specification: 3/4 In. – 16
• Warranty: 1 Year Limited
• Weight: 0.6 lb (0.2 kg)

OE Cross References

• AC Delco: 83156323, AC Delco: PF1232, AC Delco: PF1245, AC Delco: PF1787, AC Delco: PF2123, AC Delco: PF34, AC Delco: PF53, AC Delco: PF53CL, AC Delco: PF671, Ace: PH2827, Ace: PH2835, AGCO: 700723604, Agria: 52706, AIM: PH2827, AIM: PH2835, Al: AL42, Al: AL44, Al: AL64, Albin: 48495, Alco: SP820, Alco: SP828, Alco: SP845, Alco: SP917, Alco: SP929, Alco: SP932, Alco: SP942, Alco: SP951, Alco: SP994, Alfa Romeo: 60504569, Allis Chalmers: 72101498, Allis Chalmers: 72118856, Allis Chalmers: 74920158, Allis Chalmers: 74942265, AMC: DO721, AMC: NO227, AMC: NO249, AMC: SO911, AMC: TO133, AMC: TO138, Ammann: 49501000307, Ap Lockheed: LK1011, Ap Lockheed: LK1020, Ap Lockheed: LK1021, Ap Lockheed: LK1030, Ap Lockheed: LK3241, Ap Lockheed: LK3555, Ap Lockheed: LK3568, Ap Lockheed: LK3840, Ap Lockheed: LK3867, Apco: APH963, Ariens: 42366, Asahi: DO721, Asahi: NO227, Asahi: NO249, Asahi: SO911, Asahi: TO133, Asahi: TO138, Atlas: F25, Atlas: F26, Atlas: M43, Atlas: M54, Atlas: M65, Atlas: M83, Atlas Copco: 10320882, Atlas Copco: 2913103100, Atlas Copco: 2914805800, Auto Bahn: ZFL115105, Auto Bahn: ZFL115109, Auto Bahn: ZFL115110, Auto Extra: 61851348, Auto Extra: 61851361, Auto Extra: 61851391, Auto Pride: CF3614AP, Auto Pride: CF3682AP, Auto Pride: CF494AP, Auto Pro: 2348, Auto Pro: 2361, Auto Pro: 2374, Auto Sense: AS51348, Auto Sense: AS51361, Autolite: AL3614, Autolite: AL3682, Autopart: FE129, Autopart: FE213, Autopart: FE253, Autopart: FE254, Bad Boy: 063201000, Bad Boy: 063500000, Bad Boy: 063500400, Bad Boy: 63201000, Bad Boy: 63540000, Baldwin: B113, Baldwin: B1405, Baldwin: B1407, Baldwin: B1413, Baldwin: B1430, Baldwin: B159, Baldwin: B228, Baldwin: B7290, Baldwin: B7295, Baldwin: B7361, Baldwin: B7433, Baldwin: B7491, Baldwin: BT223, Baldwin: BT40038, Baldwin: BT8409, BAP/Geon: 1110000, BAP/Geon: 1110103, BAP/Geon: 1110505, BAP/Geon: 1111300, BAP/Geon: 1111302, BAP/Geon: 1111502, BAP/Geon: 1111503, BAP/Geon: 1114029, BAP/Geon: 1114209, BAP/Geon: 1114505, BAP/Geon: 1117600, BAP/Geon: 1119700, BAP/Geon: 1119810, Beck/Arnley: 0410233, Beck/Arnley: 0410266, Beck/Arnley: 0410597, Beck/Arnley: 0410699, Beck/Arnley: 0410709, Beck/Arnley: 0410712, Beck/Arnley: 0410726, Beck/Arnley: 0410731, Beck/Arnley: 0410751, Beck/Arnley: 0410765, Beck/Arnley: 0410766, Beck/Arnley: 0410774, Beck/Arnley: 0410795, Beck/Arnley: 0410829, Beck/Arnley: 0410851, Beck/Arnley: 0410871, Beck/Arnley: 0418046, Beck/Arnley: 0418052, Beck/Arnley: 0418059, Beck/Arnley: 0418077, Beck/Arnley: 0418148, Beck/Arnley: 0418150, Beck/Arnley: 0418162, Beck/Arnley: 0418164, Beck/Arnley: 0418183, Beck/Arnley: 0418723, Beck/Arnley: 0418764, Beck/Arnley: 0418798, Beck/Arnley: 0418988, Bengbu: JX0705L1, Bengbu: JX0705W, Bengbu: JX0707W1, Big A: 91023, Big A: 92215, Big A: 92288, Big A: 92348, Big A: 92361, Big A: 92367, Big A: 92374, Big A: 92389, Big A: 92391, Big A: 92785, Blue Mountain: BMJ241, Blue Mountain: BMJ4457, BMW: 11412158039, BMW: 11421250534, BMW: 11421278059, BMW: 11429055001, BMW: 11429061197, BMW: 1250534, Bobcat: 5411642211, Bomag: 5710631, Bosch: 0451102001, Bosch: 0451102002, Bosch: 0451103032, Bosch: 0451103043, Bosch: 0451103050, Bosch: 0451202055, Bosch: 0986452023, Bosch: 0986452044, Bosch: 3330, Bosch: 3400, Bosch: 72107, Bosch: 72107WS, Bosch: 72133, Bosch: 72161, Bosch: 72161WS, Bosch: 72177, Bosch: 72178, Bosch: 72237WS, Bosch: 9457281520, Bosch: D3330, Bosch: ST3330, Bosch: ST3400, Bravo: B241, Bravo: B373, Bravo: B4457, Bravo: BF373, Briggs & Stratton: 491056, British Leyland: GFE117, British Leyland: GFE148, Cam2: C241, Cam2: C2858, Cam2: C4457, Cam2: C64, Canadian Tire: 1717202, Canadian Tire: 1717446, Canadian Tire: 1717488, Carcare: OF3614, Carcare: OF3682, Carcare: OF3816, Carquest: 84000, Carquest: 84023, Carquest: 84085, Carquest: 84148, Carquest: 84181, Carquest: 84371, Carquest: 84503, Carquest: 85215, Carquest: 85288, Carquest: 85348, Carquest: 85348MP, Carquest: 85361, Carquest: 85367, Carquest: 85374, Carquest: 85374HD, Carquest: 85391, Carquest: 85785, Carquest: B6822, Carquest: R85215, Carquest: R85348, Carquest: R85348MP, Carquest: R85361, Carquest: R85361MP, Carquest: R85374, Carquest: R85391, Carrier: 253460200, Carrier: 941172, Carrier: 941172P12, Case: 6911952, Case: 87409203, Case: A46158, Case: C26191, Case: ND137978, Case: V36774, Casite: CF157, Casite: CF2951, Casite: CF3614, Casite: CF3682, Casite: CF384, Casite: CF385, Casite: CF397, Casite: CF494, Casite: CF563, Casite: CF576, Casite: CF589, Casite: CF655, Casite: CF966, Castrol: CA1060, Castrol: CA2010, Castrol: CAS3614, Castrol: CM3614, Castrol: CM3682, Castrol: CMP3614, Castrol: CMP3682, Caterpillar: 2201523, Caterpillar: 2908029, Caterpillar: 3I1164, Caterpillar: 3I1171, Caterpillar: 3I1191, Caterpillar: 3I1261, Caterpillar: 3I1295, Caterpillar: 971251, Caterpillar: 971450, Caterpillar: 9Y4492, Caterpillar: 9Y4493, Champ: LS137, Champ: LS144, Champ: LS145, Champ: LS177, Champ: LS25, Champ: LS252, Champ: LS60, Champ: LS70, Champ: LS75, Champ: LS90, Champ: PH2835XL, Champ Labs.: PH2816, Champ Labs.: PH2835, Champion: C101, Champion: C103, Champion: C106, Champion: C109, Champion: C111, Champion: C117, Champion: C126, Champion: C165, Champion: C170, Champion: C182, Champion: C235, Champion: C301, Champion: COS3614, Chevrolet: 12339994, Chevrolet: 19112634, Chevrolet: 19114118, Chevrolet: 25011520, Chevrolet: 25014423, Chevrolet: 25014441, Chevrolet: 25014818, Chevrolet: 25322837, Chevrolet: 25322842, Chevrolet: 25325406, Chevrolet: 25325415, Chevrolet: 6438162, Chevrolet: 7965051, Chevrolet: 7984256, Chevrolet: 89060466, Chevrolet: 89060498, Chevrolet: 91176162, Chevrolet: 93156186, Chevrolet: 93156323, Chevrolet: 93156668, Chevrolet: 93186554, Chevrolet: 93891771, Chief Auto: PH3614, Chief Auto: PH3682, Chief Auto: PH46, Chrysler: 4105409, Chrysler: 4105409AB, Chrysler: 4105409AC, Chrysler: 4105409BB, Chrysler: 83200052, Citgo: C241, Citgo: C4457, Citgo: PH2816, Citroen: MLS000155, Claas: 13029481, Claas: 13029482, Clark Equipment: 1804084, Clark Equipment: 3736833, Clark Equipment: 6513501, Clark Equipment: 6513601, Clark Equipment: 6565200, Clark Equipment: 6652366, Clark Equipment: 6665603, Clark Equipment: DWLTK1019575, Clean: DO217, Clean: DO247, Clean: DO337, Clean: DO341, Clean: DO815, Clean: DO834, Clean: DO850, Clean: DO911, CO-OP: PM321, CO-OP: PM460, Coopers: LSF5132, Coopers: LSF5136, Coopers: Z1015, Coopers: Z1046, Coopers: Z1416, Coopers: Z159, Coopers: Z522, Coopers: Z696, Coopers: Z782, Coopers: Z803, Coopers: Z858, Crosland: 2022, Crosland: 2066, Crosland: 2110, Crosland: 347, Crosland: 691, Crosland: 694, Cummins: 3870841, Cummins: 4900378, Cummins: C6002112110, Cyclone: PM6, Cyclone: PM8, Dai-ichi: PC111, Dai-ichi: PC207, Dai-ichi: PC207L, Dai-ichi: PC703A, Dai-ichi: PC931, Daihatsu: 1560187103, Daihatsu: 1560187201, Daihatsu: 1560187203, Daihatsu: 1560187702, Daihatsu: 1560187706, Daihatsu: 15601P87203, Daihatsu: 1651073013, Defense: DL3614, Defense: DL3682, Defense: DL9566, Denso: 1150105021, Denso: 1150105350, Denso: 1150106001, Denso: 1501003, Denso: 1501007, Deutz: 1163420, Deutz: 1164626, Deutz: 1174416, Deutz: 1183358, Deutz: 29148058, Deutz: A04H4123, Diamond: FD8311, Donaldson: P168116, Donaldson: P168126, Donaldson: P502016, Donaldson: P502022, Donaldson: P502107, Donaldson: P550227, Donaldson: P550335, Donaldson: P550572, Donaldson: P550589, Donaldson: P550711, Donaldson: P551132, Donaldson: P551251, Donaldson: P552430, Donaldson: P779181, Donaldson: P779212, Donaldson: P779215, Donaldson: P779219, Donaldson: P779961, Donit: 4310130, Donit: 431055, Donit: 431078, Doosan: LTK1019575, Doosan: MX051281, Driveworks: DW241, Driveworks: DW4457, DuraMAX: DO2827, DuraMAX: DO2835, Dynapac: 747710, Dynapac: 748620, Dynapac: 925678, Dynapac: 939068, Dynapac: 939515, Ecogard: S241, Ecogard: X10185, Ecogard: X241, Ecogard: X4457, Econo Lube: L10241, Econo Lube: L10373, Electronic Dura: PF53F, Emgo: 1055300, Emgo: 1055310, Europarts: 9022313102, Europarts: 9022324000, Evergard: SL10241, Evergard: SL24457, Evinrude: 5033539, Evinrude: 778886, Factory Motor: R1348, Factory Motor: R1361, Factory Motor: R1374, Fapofil: OR506, Fapofil: OR511, Fapofil: OR517, Fapofil: OR527, Fapofil: OR568, Federated: LF157F, Federated: LF385F, Federated: LF494F, Federated: LF563F, Fenwick: 8102165, Fiaam: FT4531A, Fiaam: FT4538, Fiaam: FT4747, Fiaam: FT4765, Fiaam: FT4825, Fiaam: FT4899, Fiaam: FT4909, Fiaam: FT4981, Fiaam: FT4985, Fiat-Allis: 76562846, Filt: FF425EC, Filt: FF467EC, Filter Products Co.: FPE2625, Filtron: OP530, Filtron: OP532, Filtron: OP534, Filtron: OP551, Filtron: OP556, Filtron: OP581, Filtron: OP583, Filtron: OP616, Filtron: OP618, Filtron: OP629, Filtron: OP635, Filtron: OP641, Finn Filter: FFUP412, Finn Filter: FFUP423, Firestone: TF335, Firestone: TF3682, Fispa: FOE261, Fispa: FOE281, Fispa: FOE356, Fispa: FOE360, Fleetguard: HF28783, Fleetguard: HF6158, Fleetguard: LF16011, Fleetguard: LF16222, Fleetguard: LF3310, Fleetguard: LF3335, Fleetguard: LF3338, Fleetguard: LF3434, Fleetguard: LF3460, Fleetguard: LF3550, Fleetguard: LF3690, Fleetguard: LF3766, Fleetguard: LF3874, Fleetguard: LF42500, Fleetguard: LF655, Fleetrite: LFR83310, Fleetrite: LFR83335, Fleetrite: LFR83338, Fleetrite: LFR83434, Fleetrite: LFR83460, Fleetrite: LFR84014, Fleetrite: LFR8655, Fleetrite: LFR8781, Fluitek: 1279, Fluitek: H300325M11, Fluitek: H330525M11, Ford: 1S7E6714BA, Ford: 1S7E6714CA, Ford: 1S7G6714DA, Ford: 1S7Z6731DA, Ford: 77BM6714C1A, Ford: 7S7G6714EA, Ford: 97MM6714B1A, Ford: 9C2E6714AA, Ford: 9W7E6714AA, Ford: 9W7Z6714AA, Ford: 9W7Z6731A, Ford: A690X6A692RA, Ford: A720X6714UA, Ford: A760X6714LA, Ford: BE8Z6731AB, Ford: BE8Z6731AC, Ford: BM5Z6731A, Ford: D1PJ6714AA, Ford: E1NN6731BA, Ford: F3XY6731A, Ford: SBA140517020, Ford Finiscode: 1039021, Ford Finiscode: 1070523, Ford Finiscode: 1072434, Ford Finiscode: 1250507, Ford Finiscode: 1555370, Ford Finiscode: 1559937, Ford Finiscode: 1595247, Ford Finiscode: 3968360, Ford Finiscode: 5002530, Ford Finiscode: 5003329, Ford Finiscode: 5003331, Ford Finiscode: 5003930, Ford Finiscode: 5003968, Ford Finiscode: 5004926, Ford Finiscode: 5012551, Ford Finiscode: 5017811, Ford Finiscode: 5018353, Fram: COR3614ACC, Fram: COR3614TLE, Fram: COR3682TLE, Fram: DG3614, Fram: DG3682, Fram: FD3614, Fram: FD3682, Fram: FE3614, Fram: FF3614, Fram: FP3614, Fram: FP3682, Fram: FP3816, Fram: FPS3614, Fram: FPS3682, Fram: FS3614, Fram: HM3614, Fram: HM3682, Fram: LO203K, Fram: LO2202K, Fram: LO230K, Fram: LO431K, Fram: LO9203K, Fram: LO920K, Fram: PH3614, Fram: PH3682, Fram: PH3816, Fram: PH46, Fram: PH5548, Fram: PH6022, Fram: PH6065A, Fram: PH7575, Fram: PH9566, Fram: PH966B, Fram: TG3614, Fram: TG3682, Fram: XG3614, Fram: XG3682, Fuller-Trans: 4304827, G-77: H241, G-77: H4457, Gardner Denver: 26C28, Gehl: 104044, Gehl: 13223, Gehl: 141448, Gehl: 186931, Gehl: 611990, Gehl: 88361, Generac: 709391026, Generac: 75755, Genie: 0745010067, Genie: 119139, Genie: 49924, Genie: 745010067, Genie: 80053, Genie: 94762, Giesse: CLH4111, GK Industries: OF2008, GK Industries: OF2010, GK Industries: OF24457, GKN: 15011501, GKN: 15011801, GKN: 15011802, Gonher: GP3682, Gonher: GP37, Gonher: GP3816, Gonher: GP45, Gonher: GP58, Goodyear: L335, Goodyear: L3682, Grasshopper: 100802, Grasshopper: 100803, Gravely: 047195, Grease Monkey: GM10241, Grease Monkey: GM10373, Grease Monkey: GM24457, Greyfriars: 9085, Greyfriars: 9115, Greyfriars: 970S, Group 7: V183, Group 7: V241, Group 7: V4457, Grove: 9414101541, Gud: Z152, Gud: Z159, Gud: Z197, Gud: Z201, Gud: Z217, Gud: Z224, Gud: Z25, Gud: Z25A, Gud: Z268, Gud: Z384, Gud: Z404, Gud: Z435, Gud: Z84, Gud: Z85, Gud: Z90, Haiye: HO7001, Haiye: HO7324, Haiye: HO7403, Haiye: HO7461, Haiye: HO7701, Haiye: HO7706, Haiye: HO7714, Haiye: HO7802, Haiye: HO7845, Hamm: 251194, Harley Davidson: 62700296, Harley Davidson: 6373199, Harley Davidson: 6373199A, Harley Davidson: 6378172R, Harley Davidson: 6380580A, Hastings: HF1000, Hastings: LF155, Hastings: LF157, Hastings: LF385, Hastings: LF494, Hastings: LF525, Hastings: LF550, Hastings: LF563, Hastings: LF576, Hastings: LF589, Hastings: LF655, Hastings: LF665, Hastings: LF687, Hengst: H20W08, Hengst: H90W02, Hengst: H90W04, Hengst: H90W12, Hengst: H90W19, Hengst: H90W20, Hengst: H90W27, Hesston: PM1220645, Hino: 22017501010, Holden: 1651073002, Holden: SD, Husqvarna: 531307392, Hyster: 3000537, IAPCO: A0210002, IAPCO: A0211001, IAPCO: A0220005, IAPCO: OF2, IAPCO: OF20, IAPCO: OF36, IAPCO: OF60, IAPCO: OF935, IHI: OE28, Indian: N11096022, Ingersoll Rand: 13287305, Ingersoll Rand: 32305674, Ingersoll Rand: 59769265, Ingersoll Rand: 92118660, Ingersoll Rand: C33445, Innocenti: 38186376, Innocenti: 551821103, Installer Edge: AL3614, Installer Edge: AL3682, Installer Edge: AL3816, Installer Edge: AL9566, International Harvester: 1972202C1, International Harvester: 78641C1, Iseki: 621324000300, Iseki: 651324002610, Isuzu: 15208AA000, Isuzu: 15208AA001, Isuzu: 2080101041, Isuzu: 2080101141, Isuzu: 5132400410, Isuzu: 5861024060, Isuzu: 5861171220, Isuzu: 9132400880, Isuzu: X13201009, J.C. Bamford: 02630935, J.C. Bamford: 02630935A, J.C. Bamford: 02930245, J.C. Bamford: 2630935, J.C. Bamford: 2630935A, J.C. Bamford: 2930245, J.C. Bamford: JFO102, J.C. Bamford: WEB4049, Jacobsen: 2208174, Jacobsen: 5000440, Jaguar: C2Z21964, Japan Parts: JFO105, Japan Parts: JFO111, Japan Parts: JFO115, Japan Parts: JFO211, Japan Parts: JFO601, Japan Parts: JFO602, Japan Parts: JFO702, Japan Parts: JFO800, Jiffy Lube: HL3614, Jiffy Lube: HL3682, Jiffy Lube: HL3816, JLG Industries: 70000319, JLG Industries: 7016331, JLG Industries: 8036204, John Deere: AE28914, John Deere: AM101207, John Deere: AM145365, John Deere: HE1220338, John Deere: TY15592, John Deere: TY15592E, John Deere: TY22046, Johnson: 5033539, Johnson: 778886, Joy: A355834, Kaeser: 619010, Kalmar: 8761343, Kendall: K17, Kendall: K19, Kendall: K24, Knecht: AW106, Knecht: AW118, Knecht: AW14, Knecht: AW169, Knecht: AW34, Knecht: AW35, Knecht: AW62, Knecht: AW75, Knecht: AW87, Knecht: OC109, Knecht: OC1091, Knecht: OC120, Knecht: OC182, Knecht: OC198, Knecht: OC21, Knecht: OC231, Knecht: OC235, Knecht: OC25, Knecht: OC295, Knecht: OC74, Knecht: OC78, Knecht: OC84, Knecht: OC981, Knecht: OF478, Kobelco: 2446U215S5, Kohler: 2505025, Kohler: 2505028, Kohler: 2505034, Kohler: 2505040, Kohler: 2505044, Kohler: 2505044B, Kohler: 2505045, Kohler: 326817, Kohler: 5205002, Kohler: 5205004, Kohler: 5205006, Kohler: 5205007, Komatsu: 37Z020F201, Komatsu: 37Z020F201L, Komatsu: 37Z02OF201, Komatsu: 37Z02OF201L, Komatsu: 6002112110, Komatsu: 6002112111, Komatsu: AS150002300, Komatsu: Z14020F201, Kralinator: L127, Kralinator: L267, Kralinator: L33, Kralinator: L38, Kralinator: L7085, Kralinator: L7181, Kramer: 0000802666, Kramer: 1000000351, Kramer: 1000108955, Kramer: 3634334, Kubota: 1521332091, Kubota: 1521332092, Kubota: 1542632430, Kubota: 3893037714, Kubota: 6602136060, Kubota: 6602136061, Kubota: 7000014673, Kubota: 7000036160, Kubota: 923980512000, Kubota: E719432110, Kubota: HH66036060, Kubota: HHK7014080, Kubota: HHK7114080, Kubota: HHK7214080, Kubota: K256136991, Land Rover: LR025306, Lautrette: ELH4031, Lautrette: ELH4071, Lautrette: ELH4075, Lautrette: ELH4088, Lautrette: ELH4089, Lautrette: ELH4144, Lautrette: ELH4148, Lautrette: ELH4155, Lautrette: ELH4159, Lautrette: ELH4190, Lautrette: ELH4213, Lautrette: ELH4237, Lautrette: ELH4248, Lautrette: ELH4262, Lautrette: ELH4298, Lautrette: ELHA4031, Lautrette: ELHA4071, Lautrette: ELHA4075, Lazorlite: DT154, Lazorlite: L111228, Lazorlite: L111279, Lazorlite: L111350, Lazorlite: L111805, Lazorlite: L112224, Lazorlite: U111600, Leyland: 224788, Leyland: ADU1833, Leyland: ADU6978, Leyland: BHA4952, Leyland: GFE117, Leyland: RTC3799, Leyland: RTC3884, Liebherr: 7621057, Lister: 20155370, Lister: 36732520, Lombardini: 2175036, Lombardini: 2175040, Lombardini: 9042175040, LPM: 13504995, LPM: 13504996, LPM: 13505344, Luber-Finer: PH2816, Luber-Finer: PH2835, Lucas: F6515, Lucas: F6584, Lucas: F6587, Lucas: F6618, Lucas: F6623, Lucas: F664, Lucas: F668, Lucas: F684, Macdon: 166047, Magneti Marelli: 1AML00004A, Magneti Marelli: 2AML00090A, Magneti Marelli: 2AML00409A, Mahindra: L1009800181, Mahle: AW106, Mahle: AW118, Mahle: AW14, Mahle: AW169, Mahle: AW34, Mahle: AW35, Mahle: AW62, Mahle: AW75, Mahle: AW87, Mahle: OC109, Mahle: OC1091, Mahle: OC120, Mahle: OC182, Mahle: OC198, Mahle: OC21, Mahle: OC231, Mahle: OC235, Mahle: OC25, Mahle: OC295, Mahle: OC74, Mahle: OC78, Mahle: OC84, Mahle: OC981, Mahle: OF478, Manitou: 136508, Manitou: 702577, Mann-Hummel: ML1003, Mann-Hummel: ML1012, Mann-Hummel: ML1027, Mann-Hummel: MW712, Mann-Hummel: W7008, Mann-Hummel: W7015, Mann-Hummel: W7035, Mann-Hummel: W7041, Mann-Hummel: W71180, Mann-Hummel: W712, Mann-Hummel: W7120, Mann-Hummel: W7122, Mann-Hummel: W71220, Mann-Hummel: W71221, Mann-Hummel: W7124, Mann-Hummel: W71243, Mann-Hummel: W71252, Mann-Hummel: W7126, Mann-Hummel: W71273, Mann-Hummel: W71280, Mann-Hummel: W71283, Mann-Hummel: W71295, Mann-Hummel: W7131, Mann-Hummel: W7134, Mann-Hummel: W7142, Mann-Hummel: W7172, Mann-Hummel: W81181, Mann-Hummel: W81184, Mann-Hummel: W81499, Mann-Hummel: W81882, Mann-Hummel: W81884, Mann-Hummel: W81898, Massey-Ferguson: 3438856M2, Massey-Ferguson: 7064608M91, Maste: DK28, Maste: DK30, Maste: DK35, Maste: DK40, Maste: DK51, Maste: DK92, Master Mechanic: MM3572, Master Mechanic: MM3614, Master Parts: PH2816, Master Parts: PH2827, Master Parts: PH2835, Master Parts: PH2858, Master Parts: PH2859, Max Lube: M183, Max Lube: M241, Max Lube: M4457, Maxlife: VF3614, Maxlife: VF3682, Mazda: 1N0014302, Mazda: 1N0514302, Mazda: LF0514302A, Mazda: LF1014302, Mazda: WLY414302, Mechanics: MOF3614, Mechanics: MOF3682, Mechanics: MOF3816, Meijer: M22, Mercruiser: 35822626T7, MFilter: MH316, MFilter: MH3310, MFilter: MH374, Michigan Fluid Power Systems: F2825, Micro: O1626, Micro: T3140, Micro: T6720G, Micro-Filters: F201, Micro-Filters: F2825, Microadl: ADC62101, Microadl: ADD62101, Microadl: ADK82101, Microadl: ADN12103, Microadl: ADT32108, Microadl: T1340, Microadl: T1341, Microadl: T1342, Microadl: T1632, Microadl: T1637, Microadl: T3148, Microadl: T500, Microadl: T501, Microadl: T9337, MicroGard: GL10183, MicroGard: GL10241, MicroGard: GL24457, MicroGard: MGL3614, MicroGard: MGL3682, MicroGard: MGL51348, MicroGard: MGL51361, MicroGard: MGL51374, Mighty: M3614, Mighty: M3682, Mighty: M9501, Mighty: MX3614, Mighty: PH2816, MileGuard: MO3614, MileGuard: MO3682, Miller Electric: 067265, Miller Electric: 65251, Miller Electric: 67265, Minit Lube: PH2835, Minit Lube: PH3682, Minit Lube: SD3, Mitsubishi: 91H2011870, Mitsubishi: MD108063, Mitsubishi: MD308302, Mobil: MO241, Mobil: MO4457, Mobil: PH2816, Mobil One: M1102, Mobil One: M1102A, Mobil One: M1208, Mobil One: M1208A, Mobil One: M1MC131, Mopar: MO409, Mopar: OFE00190, Mopar: OFE00213, Motaquip: VFL194, Motaquip: VFL200, Motaquip: VFL256, Motaquip: VFL327, Moto-Guzzi: 30153000, Motomaster: MOPH3614, Motorcraft: EFL125, Motorcraft: EFL134, Motorcraft: EFL168, Motorcraft: EFL279, Motorcraft: EFL36, Motorcraft: EFL500, Motorcraft: EFL83, Motorcraft: EFL910, Motorcraft: FL13A, Motorcraft: FL2123, Motorcraft: FL267, Motorcraft: FL776, Motorcraft: FL793, Motorcraft: FL810S, Motorcraft: FL839, Motorcraft: FL910, Motorcraft: FL910S, Motorcraft: SFL100, Motorcraft: SFL204, Motorcraft: SFL237, MP Filtri: CSG30BP10A, N.S.N.: 2940013718059, Napa: 107503, Napa: 1215, Napa: 1288, Napa: 13481348MP, Napa: 1367, Napa: 1374, Napa: 1391, Napa: 1785, Napa: 21215, Napa: 21348, Napa: 21348MP, Napa: 21361, Napa: 21361MP, Napa: 21374, Napa: 21391, Napa: 31348, Napa: 31361, Napa: 380501, Napa: 380502, Napa: 400068, Napa: 41348, Napa: 7000, Napa: 7023, Napa: 7085, Napa: 7148, Napa: 7181, Napa: 7371, Napa: 7503, Napa: PS1215, Napa: PS1348, Napa: PS7148, Nascar Select: 91348, Nascar Select: 91361, Nationwise: NW3614, New Holland: 276513, New Holland: 276514, New Holland: 84475542, New Holland: 86546618, New Holland: 87415600, New Holland: MT40283380, Nipparts: J131105, Nipparts: J131111, Nipparts: J131211, Nippon: 1150105350, Nippon: 1150106001, Nippon: O1626, Nippon: T3140, Nippon: T6720G, Nissan: 1321013211, Nissan: 1321213213, Nissan: 1520848916, Nissan: 1520855Y00, Nissan: 1520860U00, Nissan: 1520860U01, Nissan: 1520863100, Nissan: 1520871J00, Nissan: 152088916, Nissan: 15208AA000, Nissan: 15208G3100, Nissan: 15208H1010, Nissan: 15208H1011, Nissan: 15208H8901, Nissan: 15208H8903, Nissan: 15208H8904, Nissan: 15208H8905, Nissan: 15208H8910, Nissan: 15208H8911, Nissan: 15208H8911B, Nissan: 15208H8912, Nissan: 15208H8915, Nissan: 15208H8916, Nissan: 15208H8917, Nissan: 15208H8993, Nissan: 15208H8994, Nissan: 15208N8912, Nissan: 16208H8920, Nissan: 31725L1000, Nissan: 3262290000, Nissan: 3262290002, Nissan: 326229002, Nissan: 3562290002, Nissan: 6401065011, Nissan: 6501065011, Nissan: 6501265014, Nissan: A5208H8903, Nissan: AY100NS007, Nissan: AY100TY015, NKK: 4ND104, NKK: 4TP119, Norman Equip: U3124, Norman Equip: U3746, O & K: 1448988, O & K: 1472234, O & K: 530352, Onan: 1220406, Onan: 1220645, Onan: 1220679, Opel: 2866477, Opel: 6438162, Opel: 650370650371, Opel: 650373650400, Opel: 650653, Opel: 7965051, Opel: 7976051, Original Engine Management: OF1004, Original Engine Management: OF1016, Original Engine Management: OF1031, Original Equipment Plus: OF252, Original Equipment Plus: OF530, Original Equipment Plus: OF556, Original Equipment Plus: OF830, Original Equipment Plus: OF845, Original Equipment Plus: OF856, Original Equipment Plus: OF865, Outboard Marine: 5033539, Outboard Marine: 744129, Outboard Marine: 778886, P.B.R.: BC1044, P.B.R.: BC1093, P.B.R.: BC1094, P.B.R.: BC1112, P.B.R.: BC1156, P.B.R.: BC1158, P.B.R.: BC1263, P.B.R.: BC1274, Parts Plus: PH2816, Parts Plus: PH2827, Parts Plus: PH2835, PartsMaster: 61215, PartsMaster: 61348, PartsMaster: 61348BP, PartsMaster: 61361, PartsMaster: 61374, PartsMaster: 61391, Peljob: F5132400170, Pennzoil: HPZ21, Pennzoil: PZ102, Pennzoil: PZ21, Pennzoil: PZ27, Pennzoil: PZI21, Pennzoil: PZI27, Penske: PN3614, Penske: PN3682, Pentius: PLB3614, Pentius: PLB3682, Pentius: PLG3816, Pep Boys: PEP64, Performax: PO115, Performax: PO130, Performax: PO21, Performax: PO27, Perkins: 140416190, Perkins: 140517000, Perkins: 140517050, Permatic: ELH4144, Perry: PL287, Perry: PL290, Phillips 66: PO1361, Phillips 66: PO241, Phillips 66: PO373, Pit Stop: PSL17, Pit Stop: PSL24, PMC: PE404, PMC: PE502, PMC: PE611, PMC: PE811, Power Flo: SL10241, Power Flo: SL24457, Powerguard: FO08, Powerguard: FO14, Powerguard: FO18, Powerguard: FO21, Powerguard: FO77, Precision Tune: L108, Precision Tune: L161, Precision Tune: OF108, Precision Tune: OF161, Premium Guard: PG183, Premium Guard: PG193, Premium Guard: PG241, Premium Guard: PG4457, Prime-Line: 7071153, Primeguard: POF241, Primeguard: POF4457, Primeguard: POS241, Pro Gauge: PGO183, Pro Gauge: PGO241, Pro Gauge: PGO373, Pro Gauge: PGO4457, Pro-Bilt: PBO241, Pro-Bilt: PBO2827, Pro-Bilt: PBO64, Pro-Bilt: PGO42, Pro-Line: PPL10241, Pro-Line: PPL24457, Pro-Tec: 130, Pro-Tec: 130MP, Pro-Tec: 150, Pro-Tec: 188, Pro-Tec: 189, Professionals Choice: Q241, Professionals Choice: Q4457, Promotive: PH183, Promotive: PH241, Promotive: PH373, Promotive: PH4457, Pronto: PO183, Pronto: PO241, Pronto: PO241EX, Pronto: PO3614, Pronto: PO3682, Pronto: PO4457, Pronto: PO494, Pureone: PL10241, Pureone: PL24457, Purepro: L10183, Purepro: L241, Purepro: L2415, Purepro: TL24457, Purepro: XL241, Purflux: LS188B, Purflux: LS451, Purflux: LS451A, Purflux: LS491, Purflux: LS711, Purflux: LS713, Purflux: LS830, Purolator: L10028, Purolator: L10168, Purolator: L10183, Purolator: L10241, Purolator: L17201, Purolator: L19168, Purolator: L24457, Purolator: MF63000A, Purolator: ML16822, Purolator: ML16831, Purolator: PBL10241, Purolator: PBL24457, Purolator: PC20, Purolator: PC201, Purolator: PC258, Purolator: PER183, Purolator: PER240, Purolator: PER337, Purolator: PSL10241, Purolator: PSL24457, Purolator: TL10241, Purolator: TL24457, QAP: QL10241, QAP: QL24457, QAP: WT511001, QAP: WT511004, QAP: WT511005, QAP: WT511010, QAP: WT512012, QAP: WT513022, QAP: WT521006, QAP: WT526008, QAP: WT538001, QAP: WT566001, QAP: WT577001, Quaker State: QS3614, Quaker State: QS3682, Quaker State: QS3816, Quicksilver: 35822626Q15, Reliaguard: R1348, Reliaguard: R1361, Reliaguard: R1374, Renault: 3082671, Renault: 7701415054, Repco: 1110002, Repco: 1111302, Repco: 1114505, Repco: 1117600, Repco: 1119700, Repco: 1119810, Roadpro: PH2825, Roadpro: PH3614, Roadpro: PH3682, Rockhill: 61348, Rockhill: 61361, Rockhill: PH3604A, Rockhill: PH3682, Ryco: Z125, Ryco: Z145A, Ryco: Z418, Ryco: Z422, Ryco: Z493, Ryco: Z632, Ryco: Z82, Ryco: Z87A, Ryco: Z88A, Saab: 30548485, Saab: 55560202, Saab: 9144445, Saab: 93186554, Sakura: C1124, Same: 2175040, Same: 904217540, Sandvik: 55023035, Sandvik: 71198836, Saturn: 21000872, Savara: 92806117, Savara: 92811517, Savara: 92812811, Savara: 92812817, Savara: 92815217, Savara: 92824117, Savara: 92843417, Savara: 92852917, Schaeff: 5411632719, Schaeff: 5411656547, Seat: SE0280300288A, Security: L3614, Separation Technologies: LF3310, Service Champ: HP241, Service Champ: OF183, Service Champ: OF241, Service Champ: OF4457, Service Pro: E241, Service Pro: M10185, Service Pro: M241, Service Pro: M2821A, Service Pro: M4457, Shell: PH2816, Shell: PH2858, Shell: S37, Shell: S48, Shell: SH29, Shell: SH519, Shell: SH524, Shibaura: 140516010, Sierra: 187884, Sierra: 187896, Sierra: 187915, Sierra: 237803, Sierra: 707110, Silver Streak: 83283, Skoda: 441070191936, Skyjack: 147072, Sofima: SFS06135, Soparis: CAP449, Soparis: CV314, Soparis: CV382, Soparis: CV395, Soparis: CV401, Soparis: CV426, Soparis: CV428, Specialist Choice: OP241, Specialist Choice: OP4457, Specialist Choice: PER168, Specialist Choice: PER28, Specialist Choice: V183, Stens: 120345, Stens: 120694, Stens: 120970, Stens: 55109, STP: S2827, STP: S2827XL, STP: S3614, STP: S3614ML, STP: S3614XL, STP: S3816, Subaru: 15208AA000, Subaru: 15208AA001, Subaru: 420337000, Subaru: 420337100, Subaru: SOA280000, Subaru: SOA5165100, Sullair: 68561824, Sumitomo: WEB4049, Sunoco: O21, Sunoco: O26, Sunoco: O27, SuperTech: ST3614, Sure: SFO0241, Sure: SFO1450, Sure: SFO183, Sure: SFO2002, Sure: SFO2004, Sure: SFO2413, Sure: SFO2414, Sure: SFO295, Sure: SFO3005, Sure: SFO4930, Sure: SFO4931, Sure: SFO5203, Sure: SFO60B1, Sure: SFO7021, Sure: SFO7103, Sure: SFO7120, Sure: SFO7122, Sure: SFO7124, Sure: SFO7126, Sure: SFO8916, Sure: SFO966B, Suzuki: 1651060B10, Suzuki: 1651060B11, Suzuki: 1651061AR0, Suzuki: 1651073002, Suzuki: 1651073012, Suzuki: 1651073013, Suzuki: 1651083010, Suzuki: 1651083012, Suzuki: 165108311, Suzuki: 1651085FA0, TCM: 2080101041, Team1: L3614, Team1: L3682, Tecafilters: 9350605, Tecafilters: 9350618, Tecalemit: FB2099, Tecalemit: FB5303, Tecalemit: FB5309, Tecfil: PSL133, Tecfil: PSL147, Tecfil: PSL560, Tecfil: PSL966, Tecneco: OL445, Tecneco: OL458, Tecneco: OL479, Tecneco: OL54, Tecnocar: R11, Tecnocar: R458, Tecnocar: R462, Tecnocar: R83, Tecnocar: R926, Tecnocar: R927, Tecnocar: R93, Teho: 4075, Teho: 4126, Teho: OK105, Teho: OK126, Teho: OK16, Teho: OK22, Teho: OK6, Teho: OK75, Teho: OK95, Tennant: 58122, Thermo-King: 117345, Thermo-King: 127345, Thomas Equipment: 42650, Tires Plus: TF335, Tires Plus: TF3682, Toro: NN10147, Total Grip: AA3614, Total Grip: AA3682, Toyo: TO204, Toyo: TO207, Toyo: TO213M, Toyo: TO2561, Toyo: TO290, Toyota: 1150100530, Toyota: 1150101100, Toyota: 1560101010, Toyota: 1560113051, Toyota: 156017600971, Toyota: 326231262071, Toyota: 326701262071, Toyota: 809159601071, Toyota: 892202004, Toyota: 892202010, Toyota: 892202011, Toyota: 9091503002, Toyota: 9091503005, Toyota: 9091520001, Toyota: 9091520002, Toyota: 9091520003, Toyota: 9091520004, Toyota: 90915TB001, Toyota: 90915YZZB3, Toyota: 90915YZZB5, Toyota: 90915YZZB6, Toyota: 90915YZZB7, Toyota: 90915YZZB9, Toyota: 90915YZZD1, Toyota: 90915YZZD2, Toyota: 90915YZZD3, Toyota: 90915YZZD3DS, Toyota: 90915YZZG1, Toyota: 90915YZZG2, Toyota: 91915YZZD1, Toyota: C012000015, Triton: CO2816, Triton: CO2827, Triton: CO2835, Triton: CO2858, Triton: CO2859, Trust: PH2816, Trust: PH2827, Trust: PH2835, Trust: PH2858, TruStar: TO3614, TruStar: TO3682, TVI: V241, TVI: V4457, UFI: 2310300, UFI: 2313102, UFI: 2313401, UFI: 2318800, UFI: 2321000, UFI: 2324000, UFI: 2325300, UFI: 2327000, Under Car America: UC3614, Under Car America: UC3682, Under Car America: UC3816, Unico: LI7936, Unico: LI812282, Unico: LI812284, Union 76: PF1128, Union 76: PF2816, Union 76: PF2835, Union 76: PF335, Union 76: PF966, Unipart: BLM107020, Unipart: GFE117, Unipart: GFE246, Unipart: GFE261, Unipart: GFE263, Universal: 299381, Valquest: VQ241, Valquest: VQ4457, Valu-test: 42143, Valu-test: V2348, Valucraft: V2827, Valucraft: V3614, Valvoline: VO25, Valvoline: VO25BP, Vera: 1001337, Vera: 1001352, Vera: 1001402, Vera: 1050405, Vera: 1050983, Vermeer: 140105001, Vermeer: 154908001, Vermeer: 20775001, Vermeer: 274764001, Vermeer: 89110001, Vic: C111, Vic: C207, Vic: C207L, Vic: C73A, Vic: C930N, Vic: C931, Vic: C931N, VM: 9200039, Volkswagen: 030115561AA, Volkswagen: 030115561AB, Volkswagen: 030115561E, Volkswagen: 030115561F, Volkswagen: 030115561K, Volkswagen: 030115561P, Volkswagen: 030115561T, Volkswagen: 04E115561, Volkswagen: 04E115561A, Volkswagen: 04E115561AC, Volkswagen: 04E115561B, Volkswagen: 04E115561C, Volkswagen: 04E115561D, Volkswagen: 04E115561H, Volkswagen: 35115591, Volkswagen: J9091520001, Volvo: 11715272, Volvo: 20377706, Volvo: 30711616, Volvo: 30731879, Volvo: 30777486, Volvo: 30777487, Wacker: 0082115, Wacker: 82115, Wako: LO203K, Wako: LO416K, Wako: LO425K, Wako: LO822K, Walmi: WS3614, Walmi: WS3682, Walmi: WS966, Warner: WPH2816, Warner: WPH2827, Warner: WPH2835, Web: W3614, Web: W3682, Web: W3816, Web: W966B, Wheelhorse: 10147, White: 330083836, Wipac: CA106, Wipac: CA107, Wipac: CA117, Wipac: CA120, Wipac: CA130, Wipac: CA139, Wirtgen: 175499, WIX: 51215, WIX: 51288, WIX: 51348, WIX: 51348MP, WIX: 51361, WIX: 51367, WIX: 51374, WIX: 51391, WIX: 51785, WIX: 57000, WIX: 57023, WIX: 57085, WIX: 57148, WIX: 57181, WIX: 57371, WIX: WL10068, WIX: WL10224, WIX: WL7323, Woodgate: WGH6158, Woodgate: WGL3335, Woodgate: WGL3338, Woodgate: WGL3434, Woodgate: WGL3460, Woodgate: WGL3490, Woods: 70939, World Parts: W27304, World Parts: W27305, World Parts: W27309, World Parts: W27311, World Parts: W27346, World Parts: W27380, World Parts: W27389, XSV: X241, XSV: X4457, Yale & Towne: 440002266, Yamaha: 69J1344000, Yamaha: 69J134400000, Yamaha: 69J134400100, Yamaha: 69J134400300, Yamashin: CSP0430, Yugo: 46620004, Yugo: 46621482, Zastava: 46600198

KNF-SO-1002 Fitment Notes

Direct-fit product. Designed for the vehicles in the fitment list below. Check the fitment notes for variants (brake size, drivetrain, chassis range, production date) before ordering. The vehicle lookup is a filter, not a fitment guarantee.

The manufacturer’s warranty is valid only when this product is fitted by a VAT-registered professional automotive workshop; a VAT invoice from the workshop is required with any claim. Repair or replacement; labour not included. Your statutory rights are not affected.



AUDI19 models · 82 variants

CUPRA2 models · 9 variants

SEAT14 models · 105 variants

FORD6 models · 12 variants

FORD USA5 models · 16 variants

MAZDA3 models · 3 variants

SAAB1 model · 2 variants

SKODA22 models · 119 variants

VW43 models · 201 variants
