Audi RS3 (8V.2 & 8Y) & TTRS 2.5 TFSI 2017+
Performance Intercooler.
VWR143000
Delivering repeated cool intake air temperatures for your Audi RS3 8V.2 / 8Y or TTRS 8S EA855.
Again and again and again.
What it does.
The factory intercooler on the Audi RS3 & TTRS has proved to be unable to cope with the demands of higher power, hard driven cars, showing up as serious power losses during hard driving as air temperatures soar.
Our massive 'plate & bar' Intercooler System uses a stepped core to give a 70% volume increase over the factory cooler - making it one of the best performing intercooler upgrade on offer for the 2.5 TFSI.
By consistently reducing intake air temperatures (IAT), heat soak is minimised delivering increased performance again and again. No need for the recovery cool-down times needed for the production intercooler.
Our development focussed on finding the ‘sweet spot’ of maximum IAT cooling versus minimum pressure loss. This has allowed us to achieve increased size without increased lag.
Fitment is specific for the Audi RS3 8V.2, 8Y & TTRS 8S - meaning no cutting or drilling is required to fit, and it's carefully designed to retain and fit around the car's original front crash bar.
The massive 'plate & bar' intercooler unit features a high-speed stepped core using extra tall internal tubes for maximum boost flow and a 76.8% increase in frontal area.
SOPHISTICATED CORE

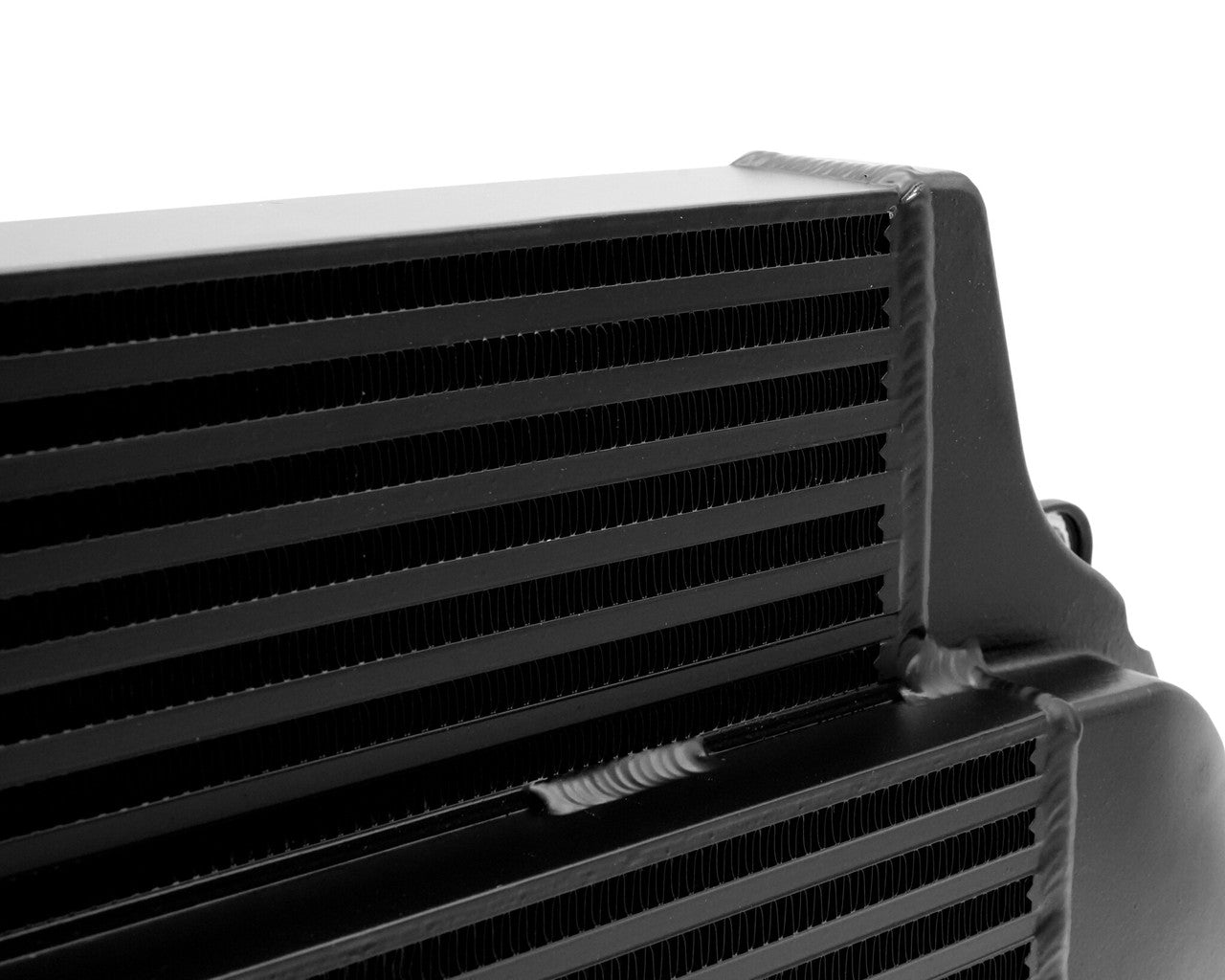

Highly effective aluminium plate & bar construction, developed following rigorous testing to optimise core dimensions, fin density, and pipe flow providing a 70% volume increase.
FLOWED END TANKS
Cast construction end tanks for minimal turbulence and restriction use internal flow guides to divert airflow up and down across the entire core depth, with 70mm inlet & outlet.
Confirmed Applications.
2.5 TFSI EA855 engines (400ps) Engine codes: DAZA, DAZC, DNWA, DXHA
AUDI RS3 8Y 2021+
AUDI RS3 8V.2 2017-2020
AUDI TTRS 8S 2017+
Precision Engineered for
Perfect Performance.

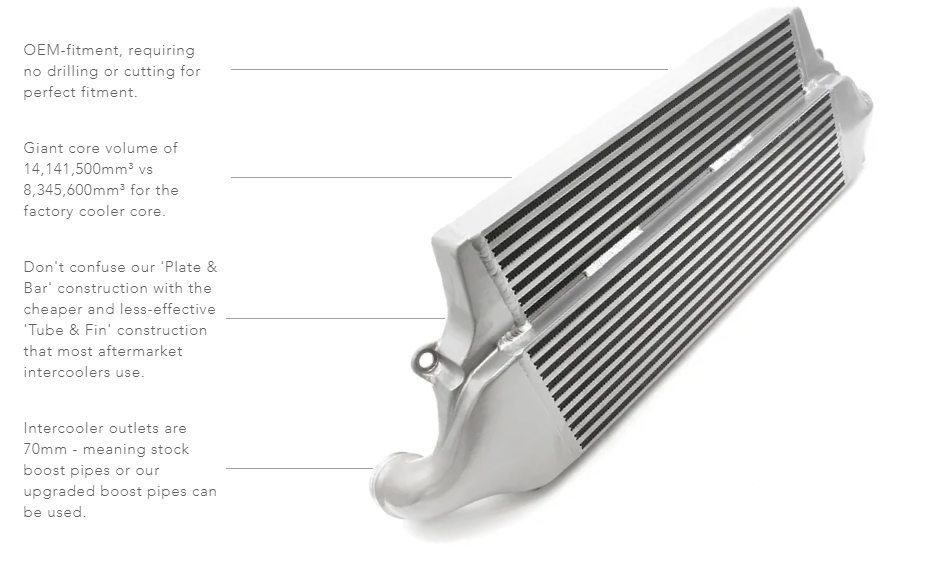

OEM-fitment, requiring no drilling or cutting for perfect fitment.
Giant core volume of 14,141,500mm³ vs 8,345,600mm³ for the factory cooler core.
Don't confuse our 'Plate & Bar' construction with the cheaper and less-effective 'Tube & Fin' construction that most aftermarket intercoolers use.
Intercooler outlets are 70mm - meaning stock boost pipes or our upgraded boost pipes can be used.
Intercooler
Performance.
It's all about air intake temperatures.
The OEM factory intercooler on the Audi RS3 & TTRS struggles with containing the all-important air intake temperatures once power is upgraded.
So, intake air temperatures begin to rise rapidly, heat soak occurs, resulting in significant power losses the harder the car is used. The only way to recover the performance of the standard intercooler is to park the car for an hour.
The RacingLine Intercooler makes a great difference in controlling IAT temperatures, meaning that your power increases keep on delivering, run after run.
