Description
Racingline Performance Oil Management System EA888 Gen4
Not all catch can systems are created equal. The RacingLine Oil Catch Can is engineered specifically for the Volkswagen Group’s latest EA888 Gen.4 2.0 TSI engines to keep your intercooler, inlet tracts, and intake system free from oil build-up - ensuring consistently clean, unrestricted airflow.
By preventing oil and water vapour from recirculating through the intake, the system helps to minimise long-term carbon accumulation within the inlet manifold and valves. The result is sustained performance and efficiency, mile after mile.
Every aspect of the RacingLine system has been developed to maintain proper crankcase ventilation under road, track, and race conditions alike. At its heart lies a large-capacity, triple-baffled catch can, using a sophisticated foam and baffle filtration setup to separate oil mist and condensation with exceptional efficiency. Precision CNC-machined from 6061-T6 billet aluminium and finished in a durable gloss black anodising, the catch can is as visually refined as it is functional - a true piece of engineering art in your engine bay. It features an integrated, knurled dipstick for effortless fluid level checks and a base drain plug for quick servicing. For even easier maintenance, an optional Remote Drain Kit can be added.
Mounted neatly beside the engine mount and secured using the factory chassis bolt, the RacingLine Catch Can integrates seamlessly for a clean, OEM-style installation that looks right at home in any engine bay.
Kit Options:
- Washer Bottle Relocation Kit -
If your vehicle has the washer bottle filler on the Left Hand side of the engine bay, You will need this.
- Quick Drain Kit -
This handy little extra will allow you to quickly empty the Oil Catch Tank without removing it from the vehicle.
Precision engineered for
perfect performance.
AN-10 male fitting for main breather line

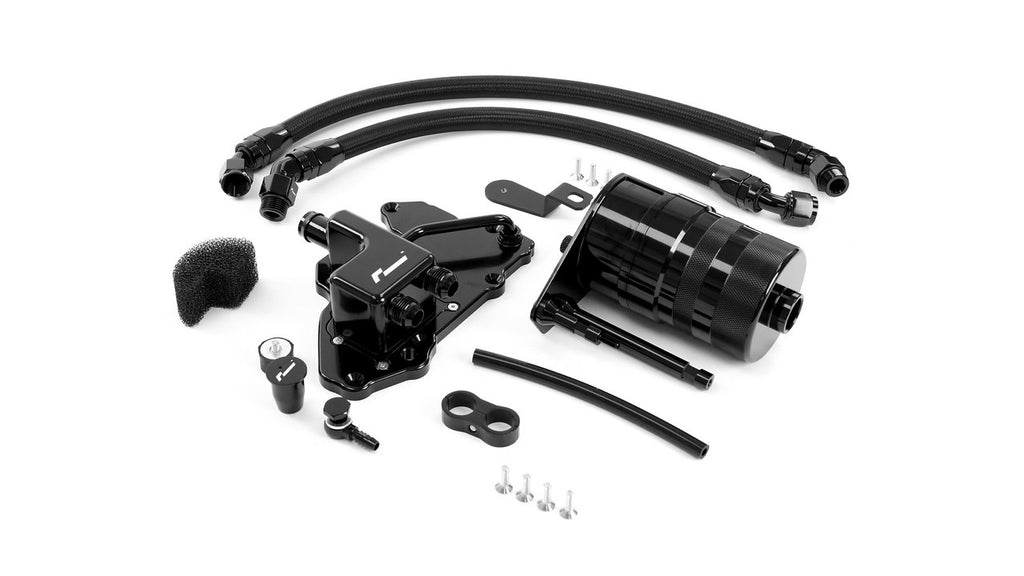

Includes a full kit of high quality hardware
Sealing gasket against the PCV replacement plate
Meticulously CNC machined from 6061-T6 billet aluminium
Integrated fluid level dipstick for easy fluid level checks
Confirmed applications.
VWR130010
|
>
|
VW Golf 8 & 8.5 GTI
|
2020+
|
|
>
|
VW Golf 8 & 8.5 GTI Clubsport
|
2020+
|
|
>
|
VW Golf 8 & 8.5 R
|
2020+
|
|
>
|
VW Arteon 2.0 TSI EA888.4
|
2020+
|
|
>
|
VW Arteon R 2.0 TSI 320ps
|
2020+
|
|
>
|
VW T-Roc R 2.0 TSI EA888.4
|
2021+
|
|
>
|
VW Tiguan II 2.0 TSI 245ps
|
2021+
|
|
>
|
VW Tiguan II R 2.0 TSI 320ps
|
2020+
|
|
|
|
|
|
>
|
Audi S3 8Y & 8Y.2
|
2020+
|
|
>
|
Audi A3 2.0 TSI 8Y & 8Y.2
|
2020+
|
|
>
|
Audi TTS 2.0 TFSI 8S 320ps (EA888.4)
|
2021+
|
|
>
|
Audi TT 45 TFSI 8S 245ps (EA888.4)
|
2021+
|
|
>
|
Audi SQ2 (facelift EA888.4)
|
2021+
|
|
|
|
|
|
>
|
Cupra Leon 4 & 4.5 300 TSI FW
|
2020+
|
|
>
|
Cupra Leon 4 & 4.5 245 TSI FW
|
2020+
|
|
>
|
Cupra Ateca 300ps (EA888.4)
|
2021+
|
|
>
|
Cupra Formentor 310ps
|
2020+
|
|
>
|
Cupra Formentor 245ps
|
2020+
|
|
>
|
SEAT Tarraco 2.0 TSI 245ps
|
2021+
|
|
|
|
|
|
>
|
Skoda Octavia 4 & 4.5 vRS 2.0 TSI 245ps NX
|
2020+
|
|
>
|
Skoda Superb III 3V 2.0 TSI (facelift EA888.4)
|
2021+
|
|
>
|
Skoda Kodiaq vRS 2.0 TSI 245ps (EA888.4)
|
2021+
|
Note: For US specification EA888.4 vehicles only, fitment will trigger a vehicle warning due to removal of the PCV pressure sensor (06H 906 052 B/D) fitted in the US-market cars. A suitable ECU calibration would be required to eliminate the warning.

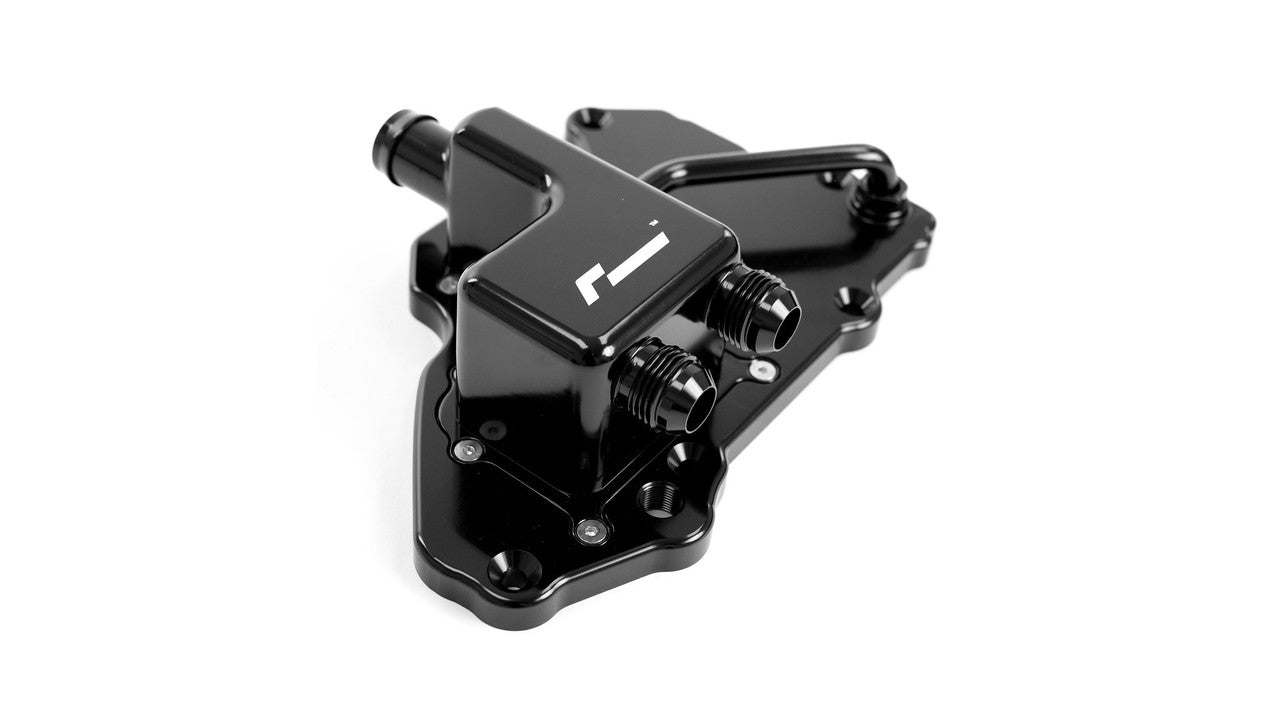

DIRECT PCV REPLACEMENT
Our Catch Can kit is supplied complete with a replacement PCV plate offering easy installation.
210 SERIES BRAIDED HOSE
The oil lines feature an attractive outer nylon braid strengthened by a stainless steel inner weave for maximum resilience.

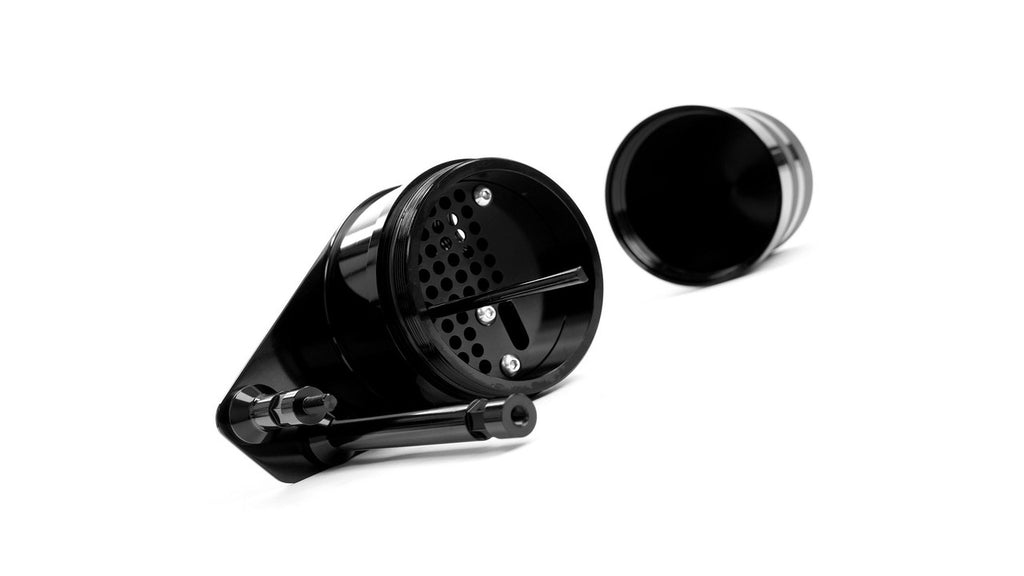

3-WAY BAFFLE SYSTEM
Internal foam and baffle filtration system to maximum intake oil vapour capture and filtration.
CATCH TANK
The large capacity Catch Can is precision machined from 6061-T6 billet aluminium to separate out intake oil and moisture vapours.
INTEGRATED DIPSTICK
Integrated fluid level knurled dipstick for easy fluid level checks for service intervals.
POLISHED SWIVEL FITTINGS
RacingLine fittings are all hand polished before anodising for the ultimate finish and limits the chances of "spanner rash"
