Description
Racingline Stage 3 Turbo – SUPERCAR PERFORMANCE
Let’s be honest, nobody chooses the Stage 3 upgrade for any reason other than performance. Instant, supercar-like power is the reason we do this! But the RacingLine Performance OEM+ Stage 3 kit offers you much more besides, in terms of driveability, simple installation and reliability. Our Stage 3 power and drivability is exceptional. Although power has exceeded 500bhp with ease in our dynamic testing, we have calibrated this full package with our OEM+ Performance Software to deliver a little less – a safe and repeatable 480bhp.
What this means is true supercar performance levels. In the 4Motion cars, equipped with DSG gearbox, expect to clock around 3 seconds 0-60 (100kph) times, with the potential for quarter mile times in the low 11 / high 10 seconds. Unleash your 2.0 TSI MQB car with our ultimate upgrade. A complete, turn-key package that combines everyday usability with devastating performance just one squeeze of the throttle away. All for great value.
Our OEM+ Stage 3 upgrade offers a complete, turn-key package that is entirely usable on a daily-driven car yet offers devastating performance just one squeeze of the throttle away. An exceptional value package of the highest quality, intelligently-designed hardware, matched in to our superb OEM+ Performance Software. Reliability comes as standard – fit it, then just enjoy it!
- A complete solution that blends supercar performance with everyday practicality.
- The heart of the Stage 3 kit is our significantly re-engineered IS38 turbo – featuring our own turbine wheels and high-spec bearing pack inside.
- By retaining the housing of the IHI turbo, fitment is simple and cost-effective, reusing the factory oil and coolant lines plus gaskets with no aftermarket connections or adaptors to worry about.
- Developed and supplied as a full, complete install kit combining our hardware with our matched OEM+ software for a true ‘Plug and Play’ solution.
- The result? Expect 480hp, amazing driveability, and on a 4WD DSG car 0-60mph/100kph in around 3 seconds. True supercar performance.
- For IS20 (smaller turbo) cars such as Golf 7 GTI, expect a power output of 450bhp.
Technical

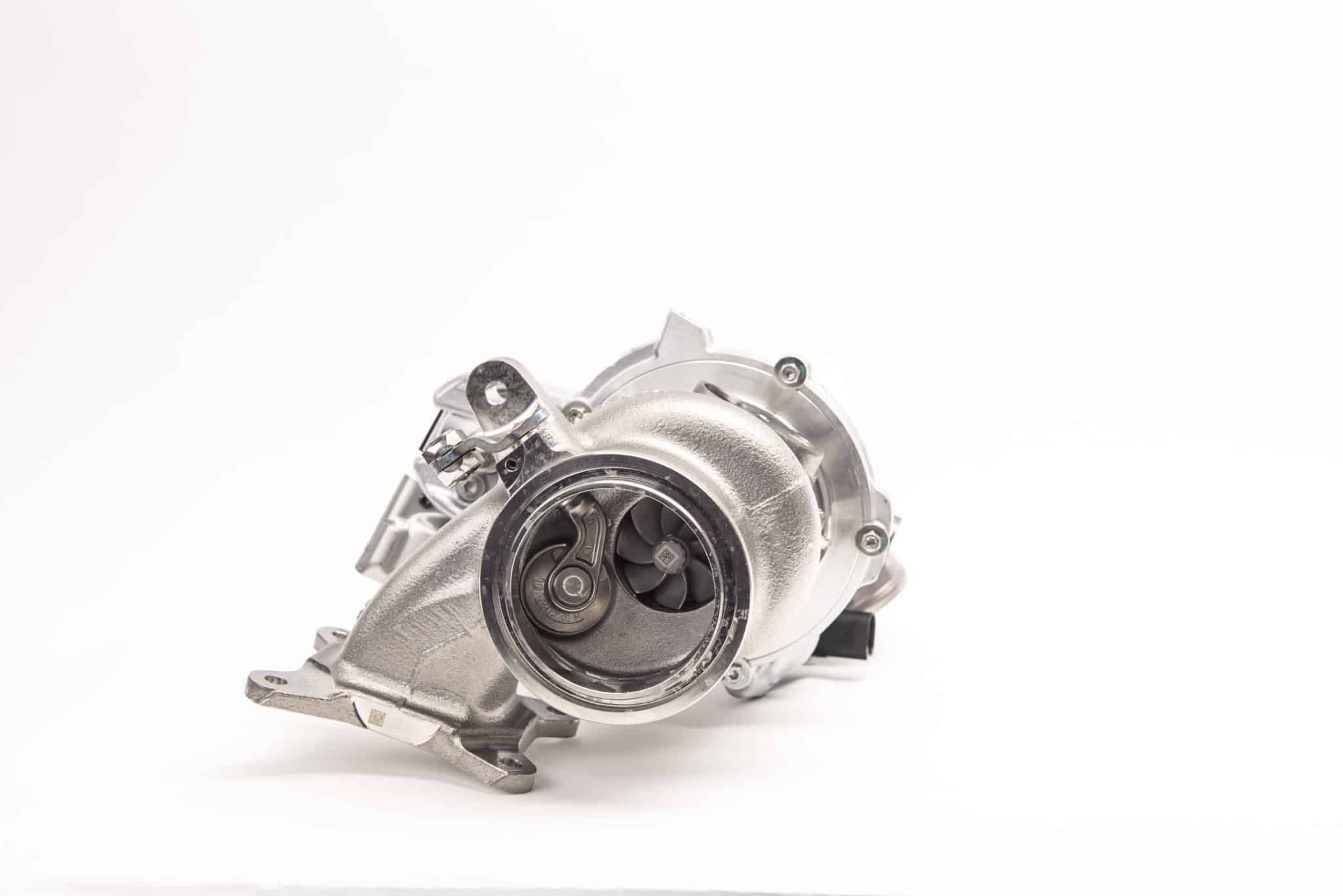

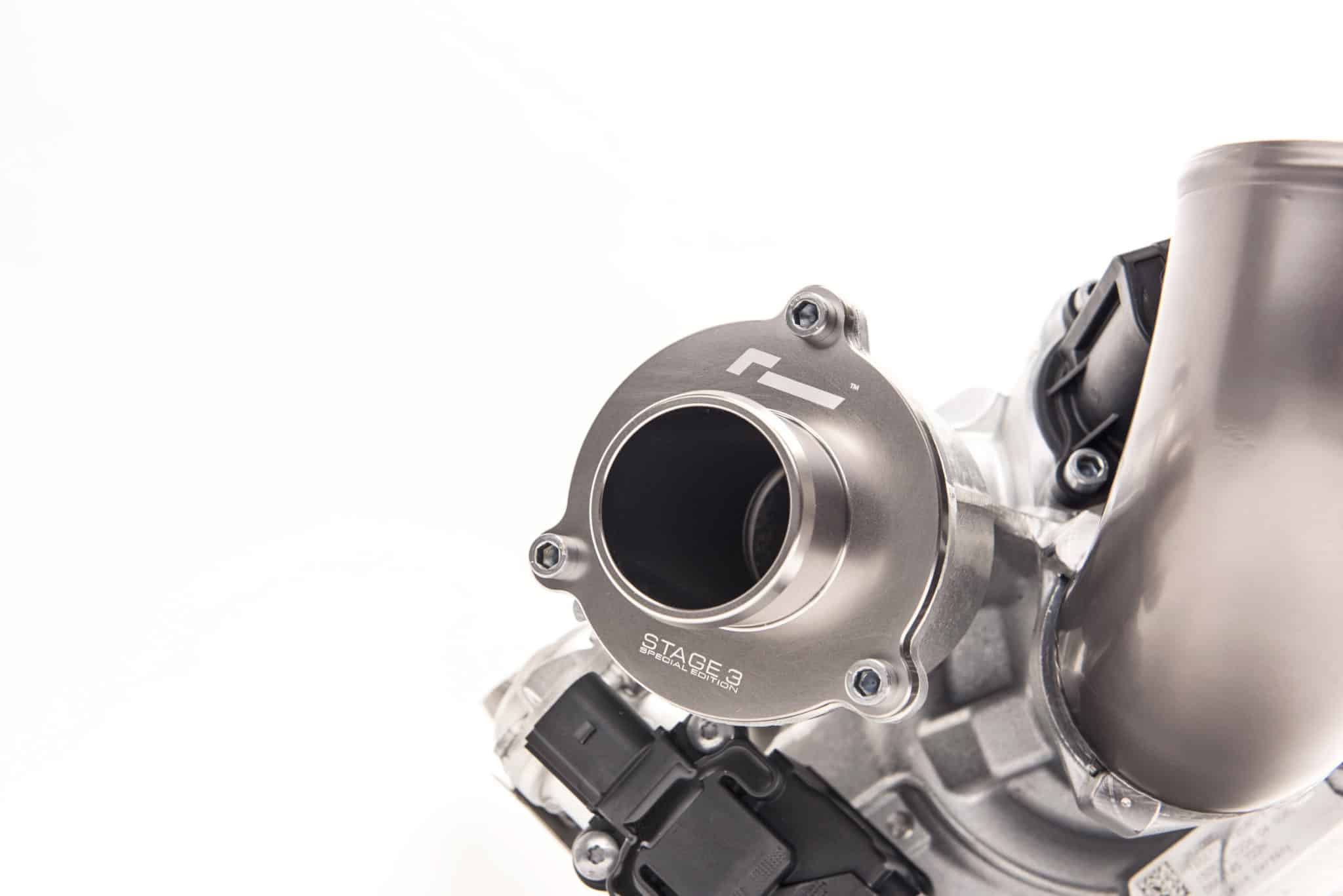

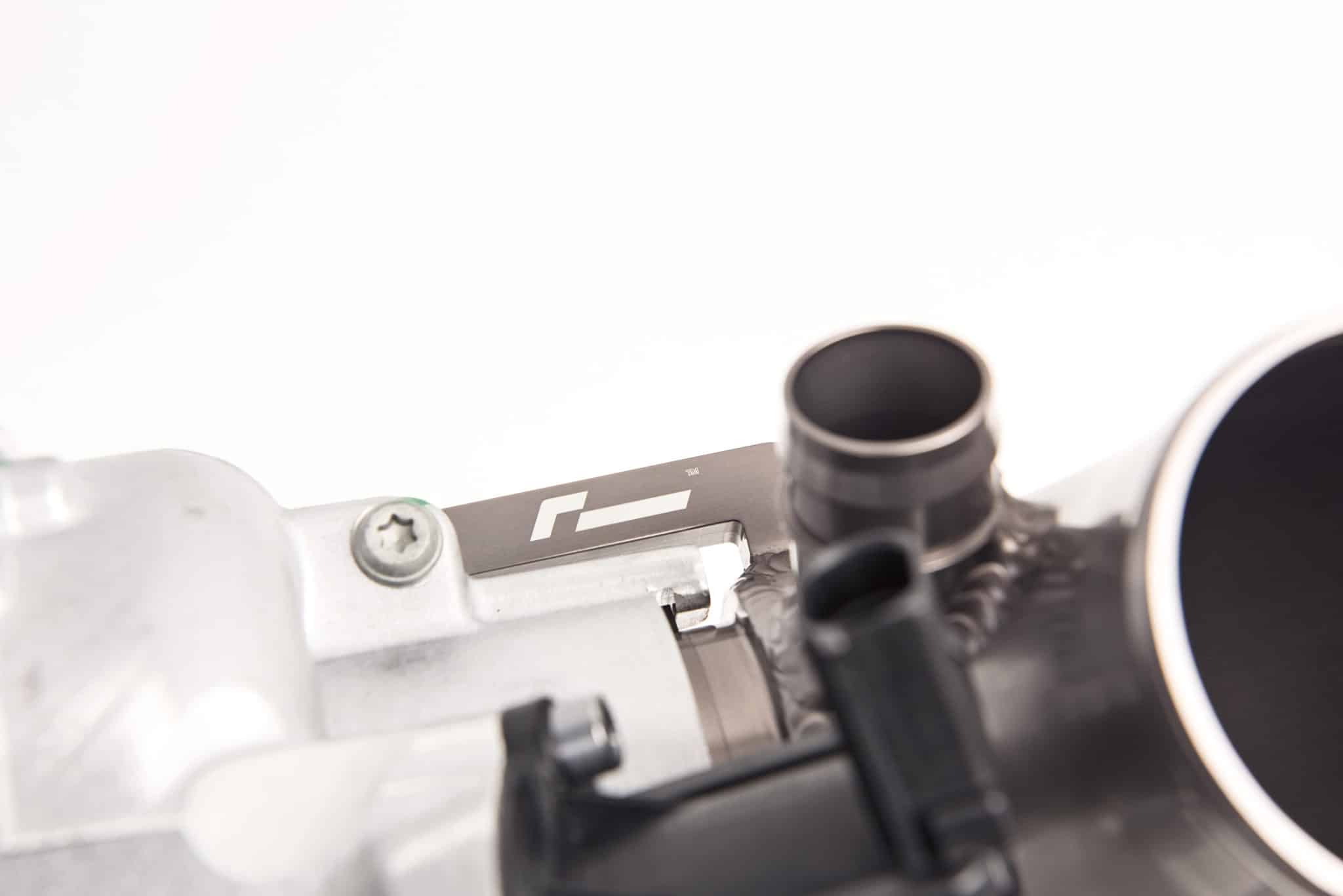

Our OEM+ Stage 3 turbo reuses the stock factory IHI turbocharger housing as its basis with massively uprated, re-engineered high-flowing internal componentry.
- Each turbo is built in the UK, balanced, checked and tested to in excess of its maximum operating speed on a Vane Flow Test Rig
- Race-spec 360° thrust bearing packs plus increased shaft diameter
- Complete new CNC machined turbine/ compressor billet wheel
- Cut-back high flow turbine wheel for higher flow capacity
- All internal flows inside the housing ported and smoothed to support increased airflow
Performance
Confirmed Applications
- VW Golf 7 & 7.5 GTI 2013+ 5G
- VW Golf 7 & 7.5 R 2013+ 5G
- VW Golf 7 & 7.5 GTI ClubSport 2016+ 5G
- VW Passat & Arteon 2.0 TSI B8 2015+ 3G
- Skoda Octavia vRS III 2014+ 5E
- Skoda Superb 2.0 TSI 2015+ B8 3V
- Audi S3 2013+ 8V
- Audi TT 2.0 TSI III 2014+ 8S
- Audi TTS III 2015+ 8S
- SEAT Leon Cupra III 2014+ 5F
