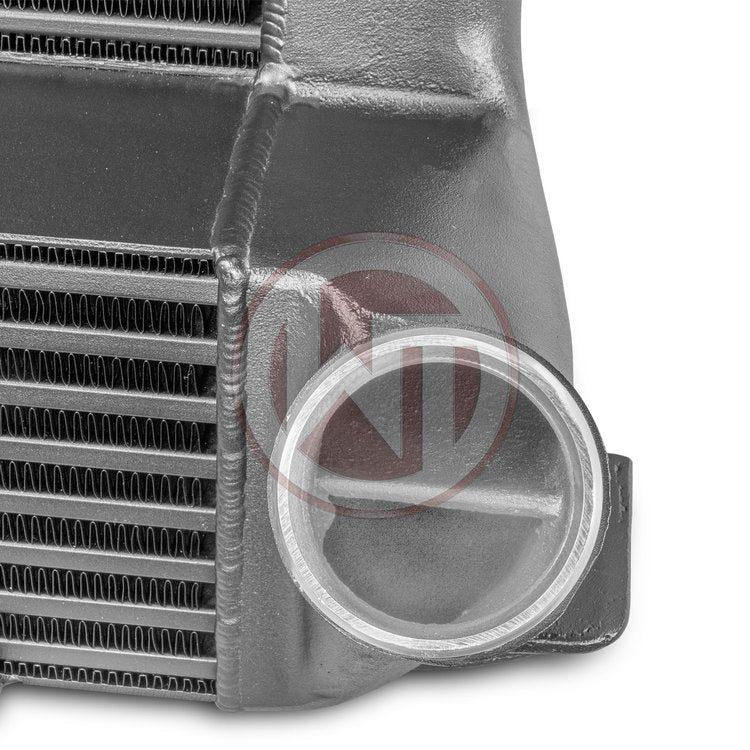

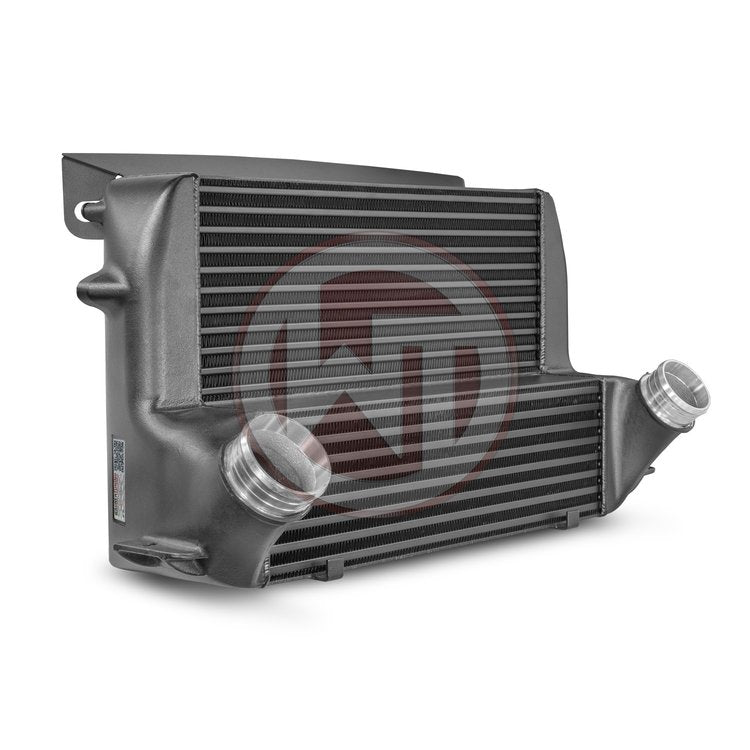

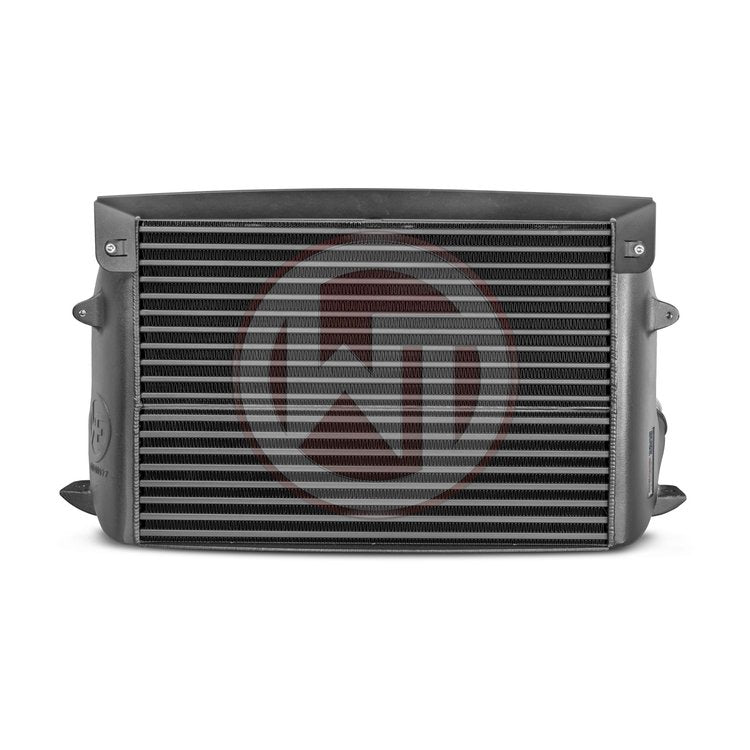

COMPETITION INTERCOOLER KIT EVO3 for BMW F20/21/22 M135i &M235i
The BMW Competition Intercooler Kit EVO III has the following core dimensions (510mm x 345mm x 180mm / stepped, 23,56L)(20Inch x 13,6Inch x 7,09Inch / stepped, 1437,7Inch³) . The high performance intercooler core provides a 165% larger frontal area and 223% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimised by CFD for best possible internal airflow. The stock click connections have been eliminated and increased to a connection diameter of Ø65mm/2,56Inch for inlet and Ø76mm/3Inch for outlet, so this kit comes with reinforced silicone hoses as well as 3 aluminium chargepipe. The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it´s size the weight of the complete intercooler is only 13,8kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation, including adjusted cross member, simple exchange of stock mounted parts. Easy installation, only some little adjustments at the plastic cooler support are necessary. All of our products undergo rigorous quality control.
Dimensions stock intercooler:
510mm x 130mm x 110mm / 20Inch x 5,1Inch x 4,3Inch
V=7,3 Liter / 445,3 Inch³
A=663 cm² / 102,7 Inch²
Dimensions WAGNER TUNING intercooler:
510mm x 345mm x 180mm [stepped] / 20Inch x 13,6Inch x 7,09Inch [stepped]
V=23,56 Liter / 1437,7 Inch³
A=1759,5 cm² / 272,7 Inch²
The BMW Competition Intercooler Kit EVO III from WAGNERTUNING fits to the following cars with & N55 engine:
BMW F20 / F21 M135i 235-240KW/320-326PS (2011-2016)
BMW F22 M235i F22 240KW/326PS (2014-2016)
Not suitable for xDrive models
kit comes with:
1 intercooler black
1 Ø76mm charge pipe
1 external air shroud
2 silicone hoses, HD
1 aluminium adapter
1 cross member
1 mounting material
1 installation instruction
.jpg)
The BMW Competition Intercooler Kit EVO III has the following core dimensions (510mm x 345mm x 180mm / stepped, 23,56L)(20Inch x 13,6Inch x 7,09Inch / stepped, 1437,7Inch³) . The high performance intercooler core provides a 165% larger frontal area and 223% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimised by CFD for best possible internal airflow. The stock click connections have been eliminated and increased to a connection diameter of Ø65mm/2,56Inch for inlet and Ø76mm/3Inch for outlet, so this kit comes with reinforced silicone hoses as well as 3 aluminium chargepipe. The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it´s size the weight of the complete intercooler is only 13,8kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation, including adjusted cross member, simple exchange of stock mounted parts. Easy installation, only some little adjustments at the plastic cooler support are necessary. All of our products undergo rigorous quality control.
Dimensions stock intercooler:
510mm x 130mm x 110mm / 20Inch x 5,1Inch x 4,3Inch
V=7,3 Liter / 445,3 Inch³
A=663 cm² / 102,7 Inch²
Dimensions WAGNER TUNING intercooler:
510mm x 345mm x 180mm [stepped] / 20Inch x 13,6Inch x 7,09Inch [stepped]
V=23,56 Liter / 1437,7 Inch³
A=1759,5 cm² / 272,7 Inch²
The BMW Competition Intercooler Kit EVO III from WAGNERTUNING fits to the following cars with & N55 engine:
BMW F20 / F21 M135i 235-240KW/320-326PS (2011-2016)
BMW F22 M235i F22 240KW/326PS (2014-2016)
Not suitable for xDrive models
kit comes with:
1 intercooler black
1 Ø76mm charge pipe
1 external air shroud
2 silicone hoses, HD
1 aluminium adapter
1 cross member
1 mounting material
1 installation instruction
